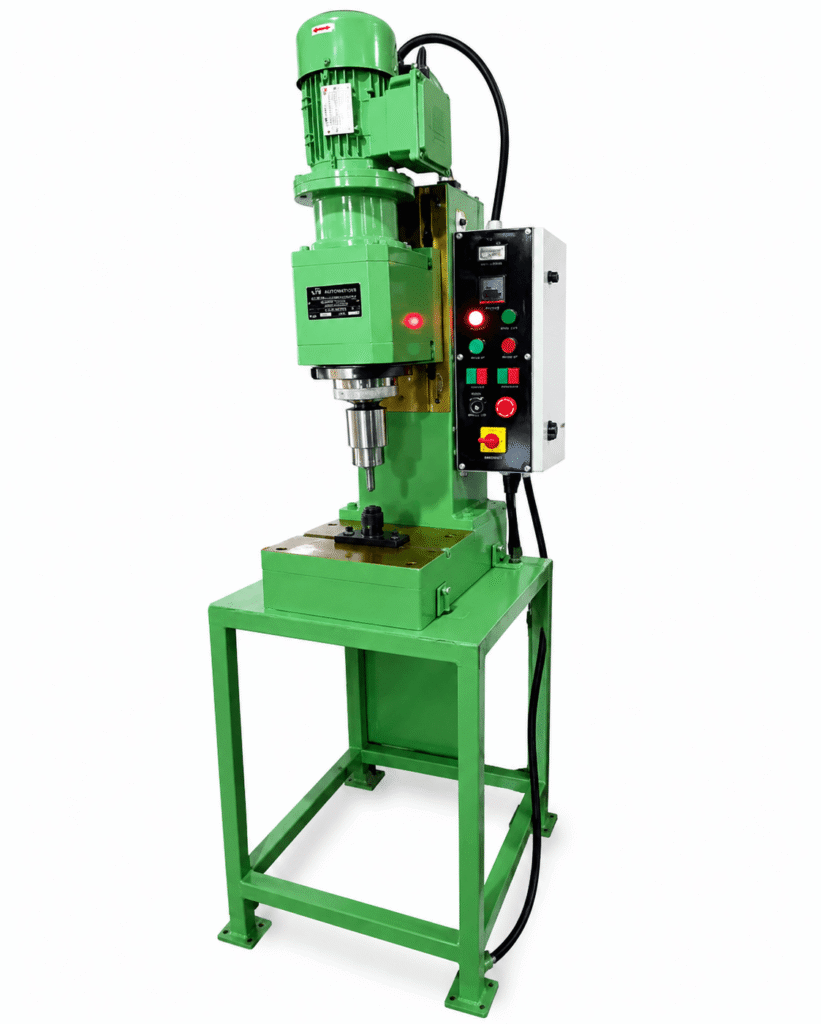

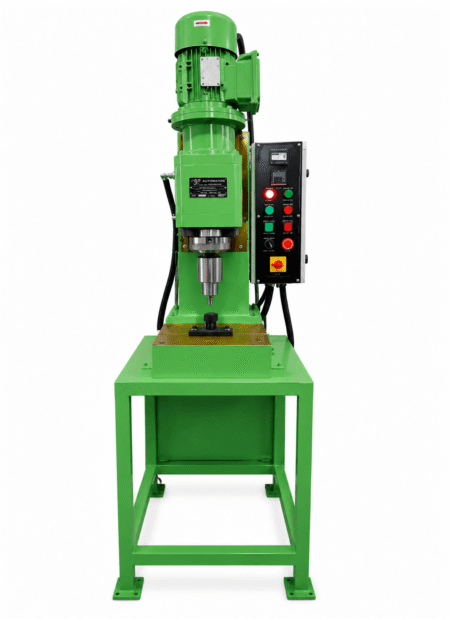

Spin Riveting Machine

Name: Spin Riveting Machine Manufacturer in India | Price
Price: 165000.00 INR
Availability: InStock

About the Spin Riveting Machine

A spin riveting machine forms the rivet with a rotating tool on the rivet axis, flaring or curling the material outward rather than upsetting it. It is the natural choice for tubular and hollow rivets, and for joints that must not see impact.

Key Features

Rotary forming on the rivet axis for flaring and curling operations
Suited to tubular, hollow and semi-tubular rivets
Low axial force and low noise compared with impact setting
Forming tool profile selected to the finished head or flare required
Depth stop for repeatable flare height across a batch

Ideal For / Applications

Tubular rivet assemblies in hardware and fittings
Curling and flaring of hollow sections and eyelets
Friction material and lining attachment
Light assemblies where impact would distort the part
Replacing hand-formed flares for consistency

Frequently Asked Questions

What is the difference between spin and impact riveting?

Impact upsets the rivet with a blow, spinning forms it progressively with a rotating tool. Spin gives lower shock load, lower noise and a cleaner flare, at the cost of a slightly longer cycle.

Which rivets suit spin riveting?

Tubular, hollow and semi-tubular rivets, and eyelets, where the wall is flared or curled over. Large solid rivets are usually better suited to orbital, radial or impact forming.

How is flare height held consistent?

With a depth stop and a rigid frame, so every part sees the same finished dimension rather than depending on operator feel.

Need this machine for your component?

Send us the component drawing and joint specification. VR Automation quotes against your part, not a catalogue.

Spin Riveting Machine ₹165,000.00

Spin Riveting Machine

This item: Spin Riveting Machine

₹165,000.00

Riveting Machine Model 05

1 × Riveting Machine Model 05

₹155,000.00

conveyer system

1 × conveyer system

₹90,000.00

Auto Feed Riveting Machine

1 × Auto Feed Riveting Machine

₹290,000.00

Pneumatic Riveting Machine

1 × Pneumatic Riveting Machine

₹85,000.00

Machine Type	Pneumatic
Max Rivet Diameter	20MM
Pressing Force	5 ton
Operation Mode	Semi Automatic
Rivet Type	Solid Rivet
Motor Power	2 hp
Power Consumption	1 AND 3 PHASE
Production Capacity	as per requirement
