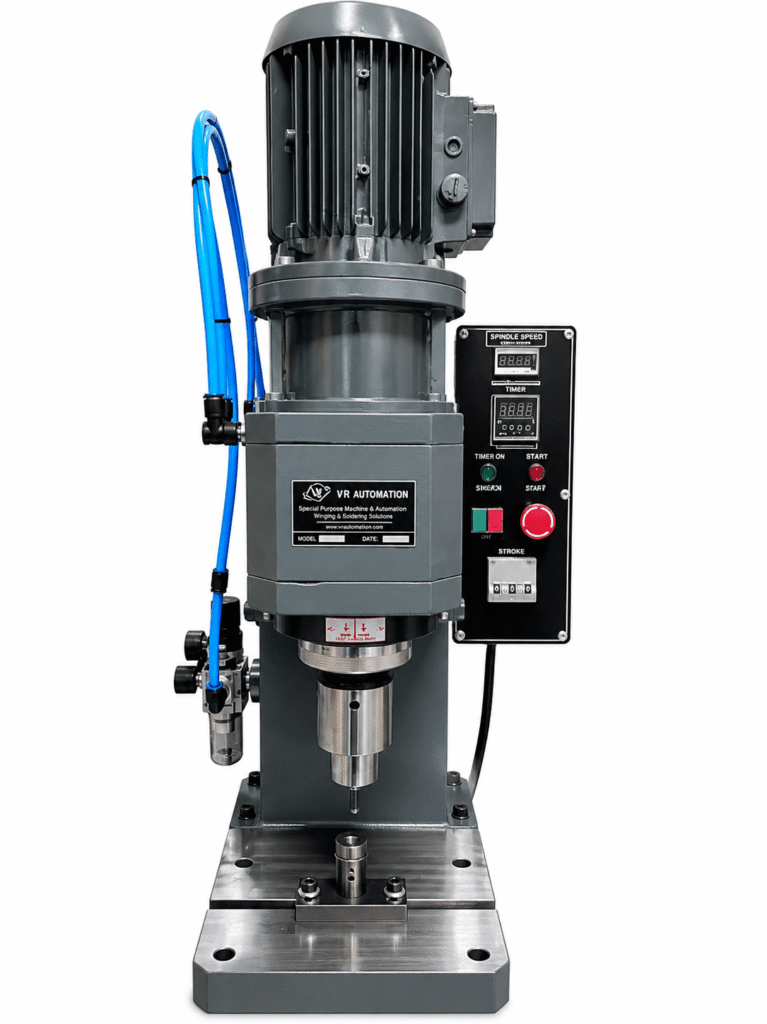

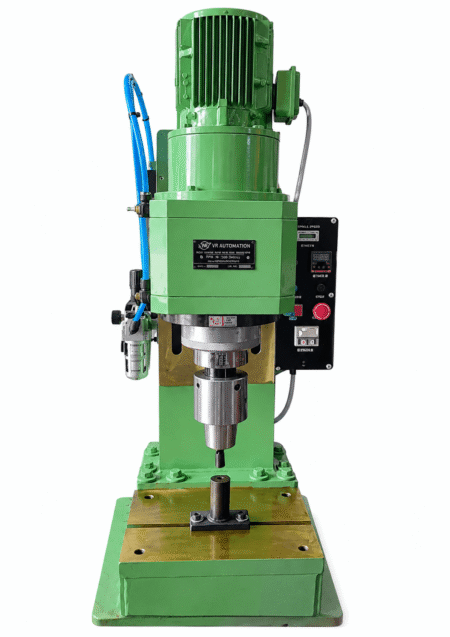

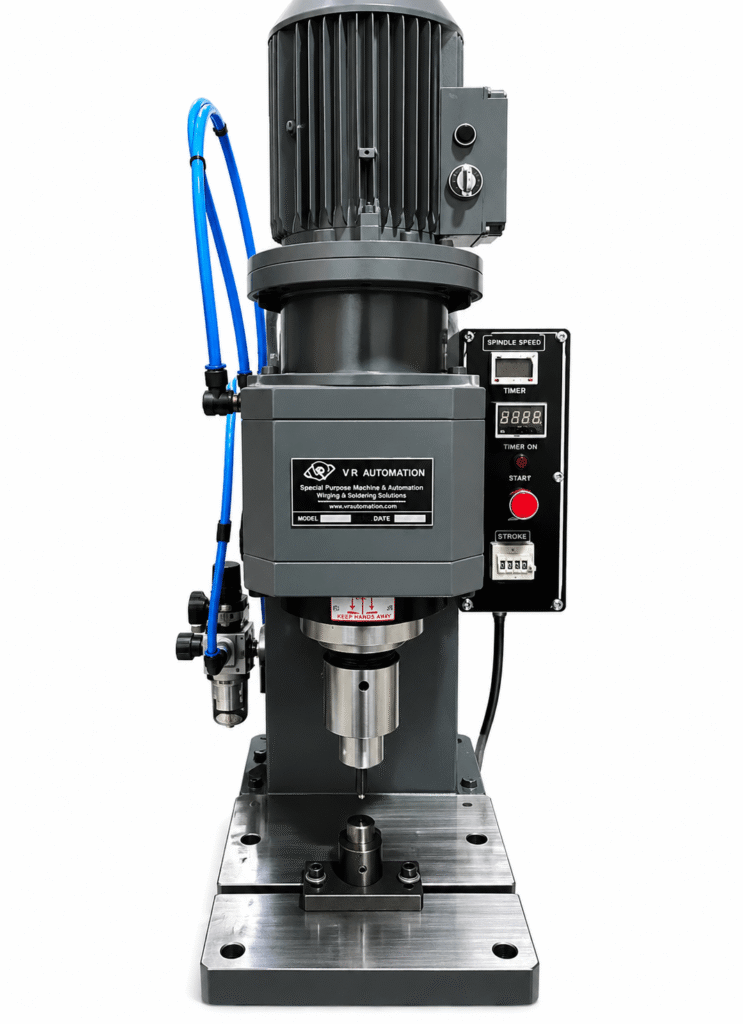

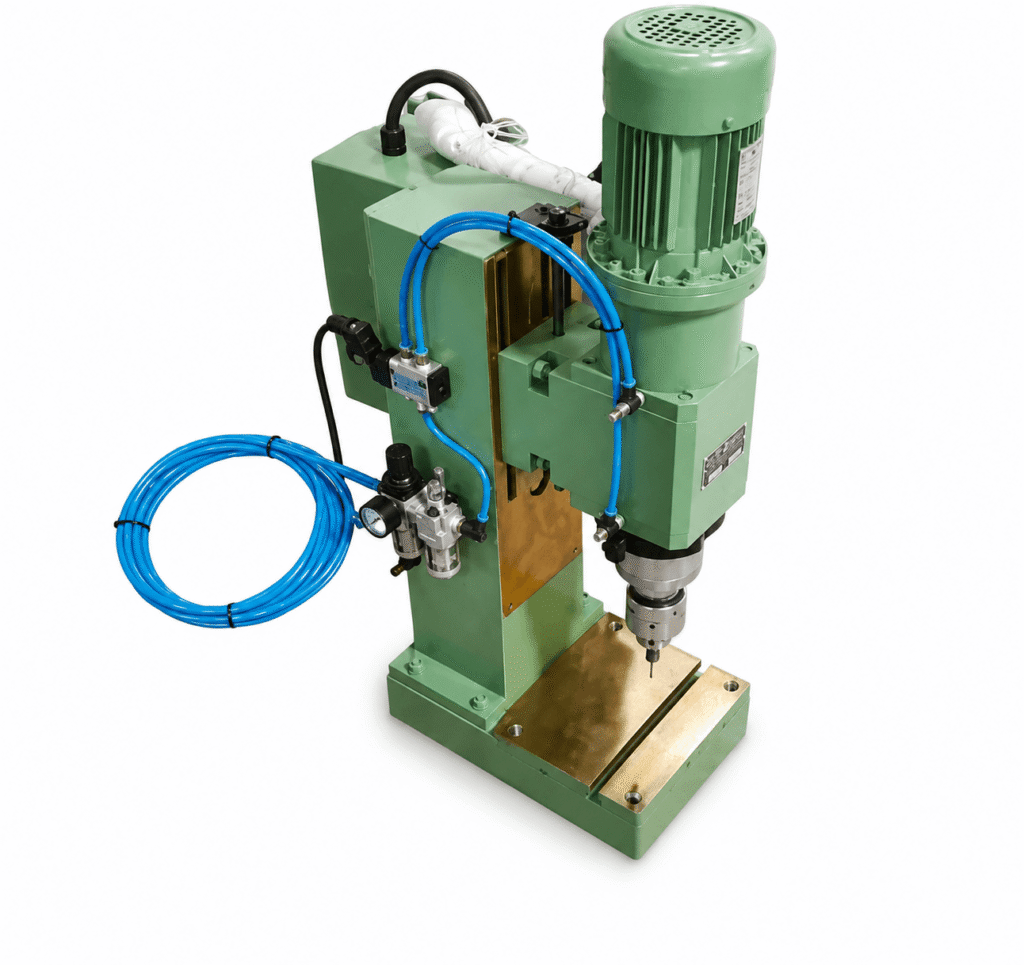

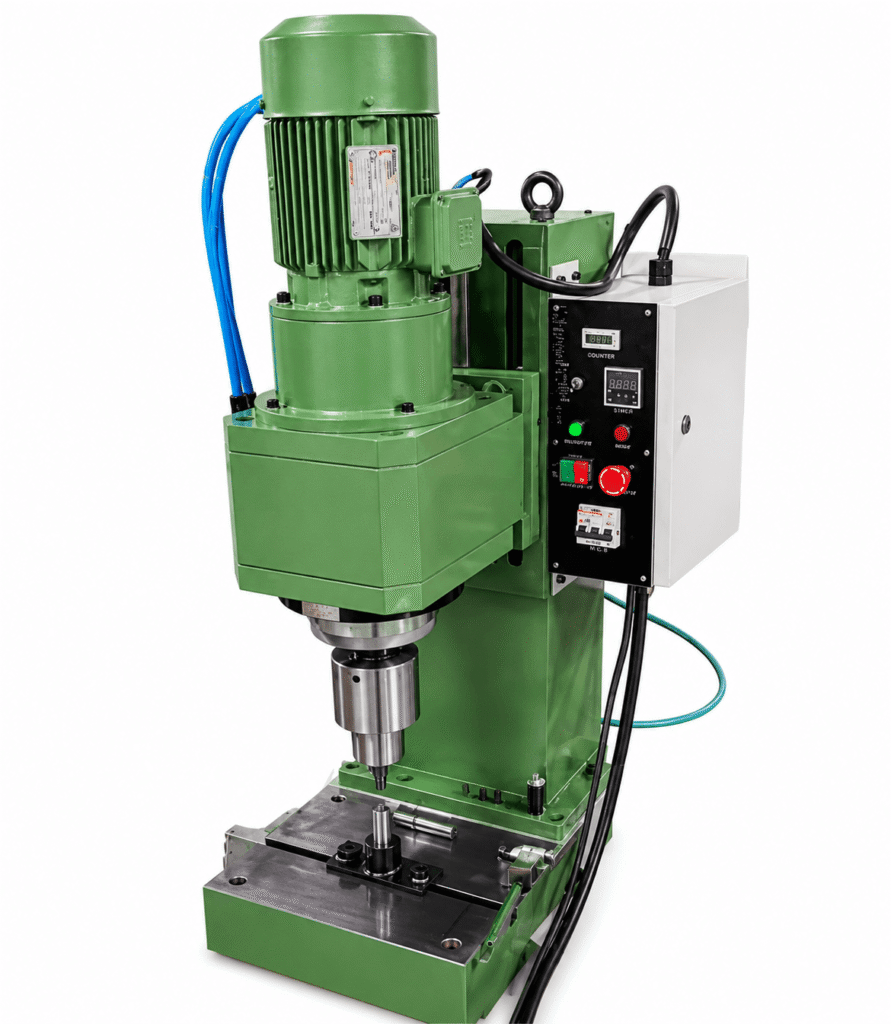

Orbital Riveting Machine

Name: Orbital Riveting Machine Manufacturer in India | Price
Price: 100000.00 INR
Availability: InStock

About the Orbital Riveting Machine

An orbital riveting machine forms the rivet head by rolling an inclined peen around the rivet axis, so the metal flows progressively under steady pressure instead of a hammer blow. Because only a small crescent of material is worked at a time, axial force is a fraction of a straight press — typically a fifth to a tenth.

Key Features

Cold forming by rolling contact, not impact — no shock load into the component
Low axial force, so bearings, thin sections and brittle parts survive the operation
Quiet in operation, suitable for assembly areas with occupational noise limits
Clean, cosmetic head finish with peen profile selected to the required head shape
Stroke limiter allows a joint to be riveted tight yet still free to swivel

Ideal For / Applications

Door, furniture and cabinet hinge pivots
Scissors, plier and hand-tool joints that must stay free-moving
Castor wheel pins and swivel assemblies
Brake shoe and clutch friction facing riveting
Electronics and instrument assemblies where shock load would crack the substrate

Frequently Asked Questions

Why is orbital riveting quieter than impact riveting?

It forms the head by continuous rolling contact rather than an impulse blow, so there is no impact noise. This is why orbital machines are described as noiseless or silent riveters.

Can it rivet a joint that must still move?

Yes, and this is one of its main advantages. Force is applied progressively and stays low, so hinges, pivots and castor wheels can be riveted to a controlled tightness while remaining free to rotate. The stroke limiter setting controls residual clearance.

How does it differ from radial riveting?

Both are low-force rotary cold-forming processes. The orbital peen traces a simple circle around the rivet axis; a radial peen traces a rosette path that sweeps across the head, moving more material per revolution and suiting larger or tougher rivets.

Need this machine for your component?

Send us the component drawing and joint specification. VR Automation quotes against your part, not a catalogue.

Orbital Riveting Machine ₹100,000.00

Orbital Riveting Machine

This item: Orbital Riveting Machine

₹100,000.00

Bottom Riveting Machine

1 × Bottom Riveting Machine

₹290,000.00

Invert Riveting SPM

1 × Invert Riveting SPM

₹45,000.00

Pneumatic Orbital Spin Riveting Machine

1 × Pneumatic Orbital Spin Riveting Machine

₹90,000.00

portal c frame

1 × portal c frame

₹50,000.00

Machine Type	Pneumatic
Max Rivet Diameter	3 MM To 20 MM
Applications	Industrial Riveting
Pressing Force	5 ton
Material	Mild Steel
Voltage	240 V
Operation Mode	Semi Automatic
Rivet Type	Solid Rivet, Hollow Rivet, Semi Tubular

Product Overview

Explore More Products

portal c frame

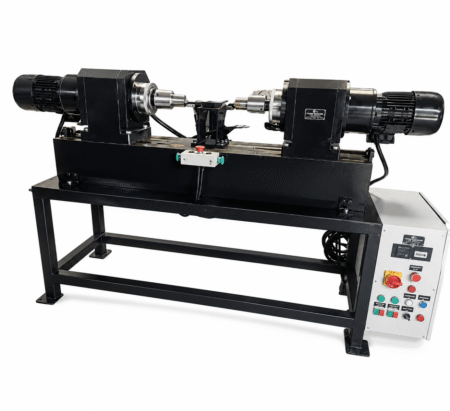

Dual Head Riveting Machine
