Jigs and Fixtures Manufacturer in Pune
VR Automation designs and manufactures custom jigs and fixtures for machining, assembly, welding and inspection — engineered around your component drawing and datum scheme.
A jig guides the tool; a fixture holds and locates the work. Both exist to remove the variable that causes most dimensional scatter in batch production: the operator setting the part up by eye.
2 ModelsAvailable in this range
₹70,000–₹1,15,000Indicative ex-works
Made in PuneBuilt in-house since 2019
PAN IndiaSupply & service
Machine Features & Types
Accurate Location
Locating scheme taken from your drawing datums so the part repeats piece to piece.
Reduced Setup Time
Load, clamp, machine, unload — no marking out, no dial indicator setup per piece.
Rigid Clamping
Clamping arranged to resist cutting or assembly forces without distorting the component.
Poka-Yoke
Physical features that make wrong-way loading impossible.
Machining & Assembly
Drill jigs, milling fixtures, assembly fixtures and inspection fixtures from one supplier.
Volume Ready
Designed for the production volume and operator ergonomics you actually have.

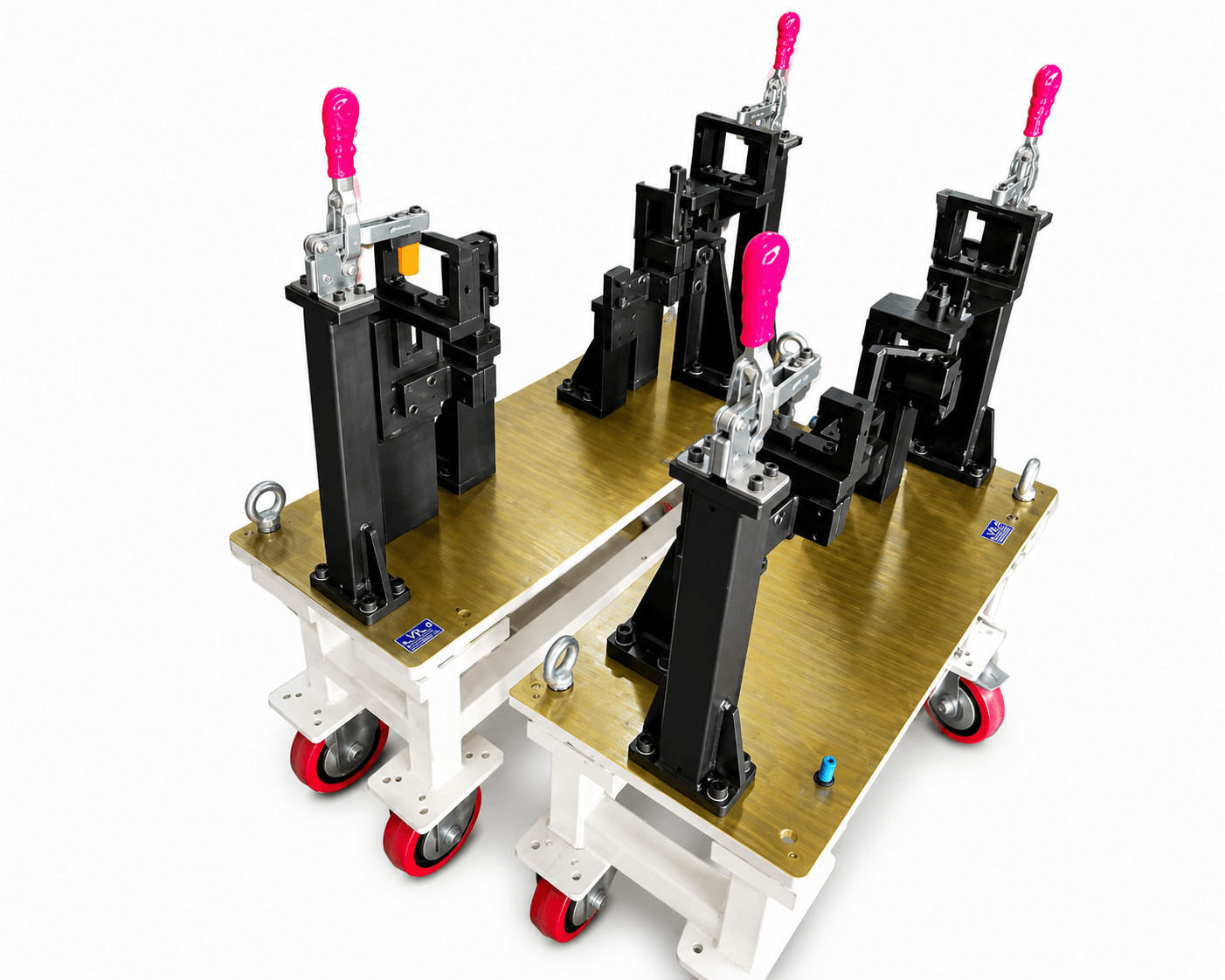

Our Jigs and Fixtures Range
2 products in this category. Prices are indicative and ex-works — tooling and component fixture are quoted against your part.
Industries We Serve
Automotive Components
Machining and assembly fixtures for volume component production.
Job Work & Machining
Reducing setup time and scrap on repeat batch work.
Electrical Assembly
Assembly and test fixtures for panels and enclosures.
General Engineering
Drilling, boring and milling fixtures for repeat components.
Inspection
Checking fixtures that hold the part in its design datum scheme.
Sheet Metal
Assembly and joining fixtures for fabricated parts.
Applications & Components
Tooling and fixture are engineered per component. These are the applications we are asked for most often:

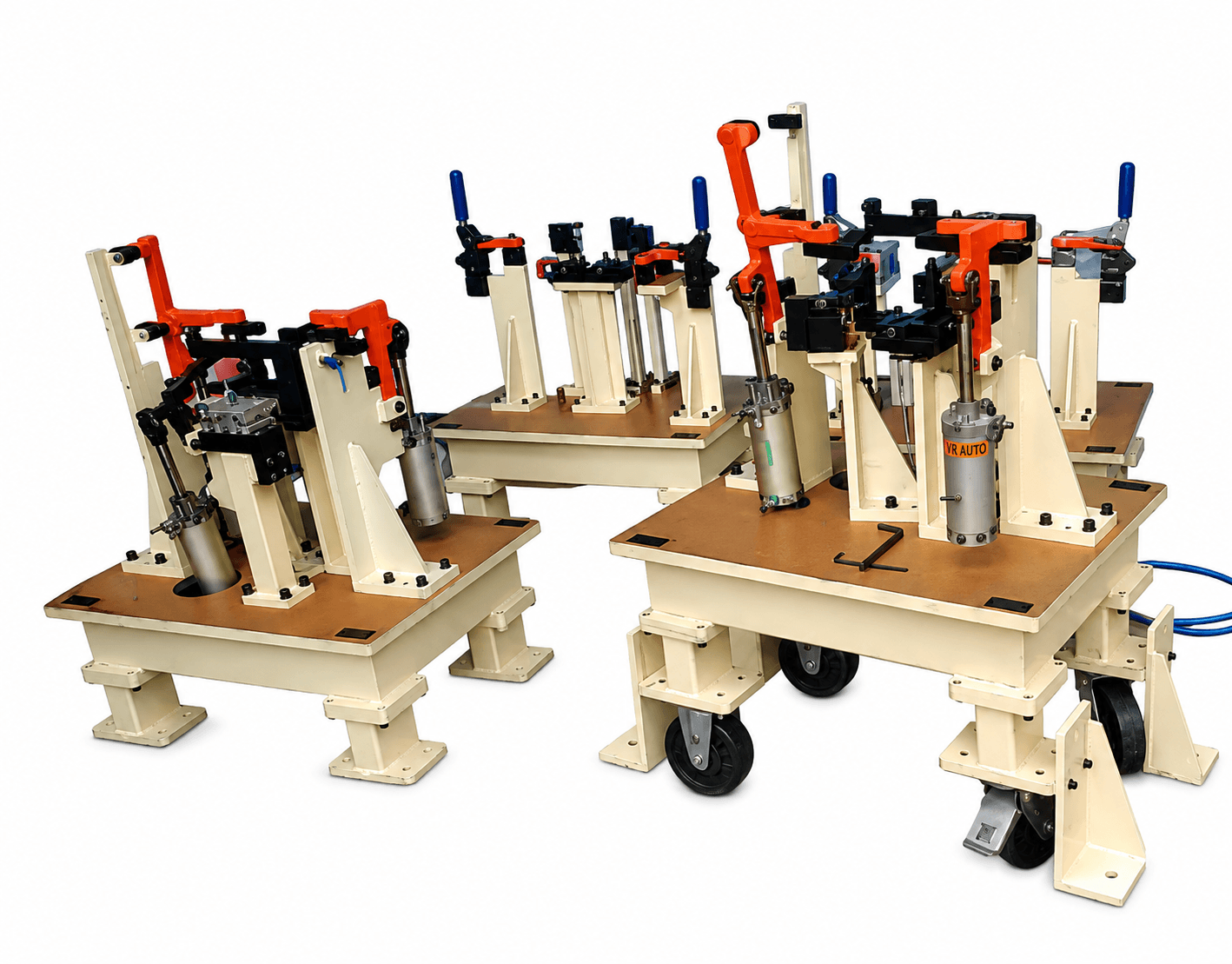

Drill jigsMilling fixturesBoring fixturesAssembly fixturesInspection fixturesChecking fixturesWelding jigsRiveting fixturesScrewing fixturesTurning fixturesIndexing fixturesHydraulic fixturesPneumatic clampingModular fixtures
Why Buy From VR Automation
Built to Your Drawing
Tooling and component fixture are engineered around your part, so the machine arrives ready to run rather than needing development on your floor.
Repeatable Output
Force, stroke and cycle are set by the machine, so joint quality stops depending on operator strength or fatigue late in a shift.
Made in India
Locally engineered and locally supported, priced against Indian production cost rather than import landed cost.
Installation & Service
Commissioning, operator training, spares and service support across India, since 2019.
Designed, machined, assembled and tested in-house at our Bhosari, Pune facility. You deal with the engineers who build the machine, not a trading intermediary — which keeps lead times short and spares available for the working life of the machine.
Price & Quotation
Price depends on force, capacity, tooling, automation level and the component fixture, so a catalogue figure would be misleading. We quote against your actual part.
To receive a quotation, send us:
- Component drawing or sample details
- Material, thickness and joint or feature positions
- Target cycle time and production volume per shift
- Whether you need standalone, semi-automatic or fully inline operation
Frequently Asked Questions
What is the difference between a jig and a fixture?
A jig guides the cutting tool as well as holding the work — a drill jig with bushes, for example. A fixture holds and locates the work but does not guide the tool; the tool path comes from the machine.
Why use jigs and fixtures instead of manual setup?
Manual setup varies with the operator and takes time on every piece. A jig or fixture makes location repeatable, cuts setup to a load-and-clamp, and removes most of the dimensional scatter in batch production.
Do you design fixtures from our component drawing?
Yes. We work from your drawing and datum scheme, and confirm the locating and clamping concept with you before manufacture.
Can you build inspection and checking fixtures?
Yes. Inspection fixtures hold the component in its design datums so features can be checked quickly on the shop floor instead of queuing for a CMM.
What do you need to quote a fixture?
Component drawing with datums, the operation to be performed, machine or station it mounts to, production volume and cycle time.
Get a Quotation
Send your component drawing and requirement. Our engineers will recommend a configuration and quote a price.
