Jigs and Fixtures

Name: Jigs and Fixtures Manufacturer in Pune | VR Automation
Price: 115000.00 INR
Availability: InStock

About the Jigs And Fixtures

A jig holds the component and guides the tool; a fixture locates and clamps it while the machine provides the accuracy. Both start from a datum scheme, and both fail the same way — when the fixture datums do not match the datums the drawing controls.

Key Features

Designed to a 3-2-1 location scheme so the part is constrained, not over-constrained
Fixture datums matched to the drawing and inspection datums
Manual, pneumatic or hydraulic clamping selected to volume and cycle time
Nett-form locators and compliant supports for formed and flexible parts
Clamping sequence designed so clamping itself does not distort the part

Ideal For / Applications

CNC and VMC workholding
Assembly fixtures for riveting, screwing and pressing
Drill jigs with hardened bushes
Welding and joining fixtures
Pre-production and pilot tooling

Frequently Asked Questions

What is the difference between a jig and a fixture?

A jig holds the component and also guides the cutting tool, usually through hardened bushes, so accuracy comes from the jig. A fixture only locates and clamps, and accuracy comes from the machine axes.

Why must fixture datums match the drawing datums?

Because conformance is defined relative to the drawing datum scheme. A fixture located from convenient features measures a different relationship from the one the drawing controls, and will both reject good parts and pass bad ones.

Can you design for flexible or formed sheet parts?

Yes. Those need nett-form locators and compliant supports that take up variation without forcing the part into a shape it will not hold once released — plus a clamping sequence that does not distort it.

Need this machine for your component?

Send us the component drawing and joint specification. VR Automation quotes against your part, not a catalogue.

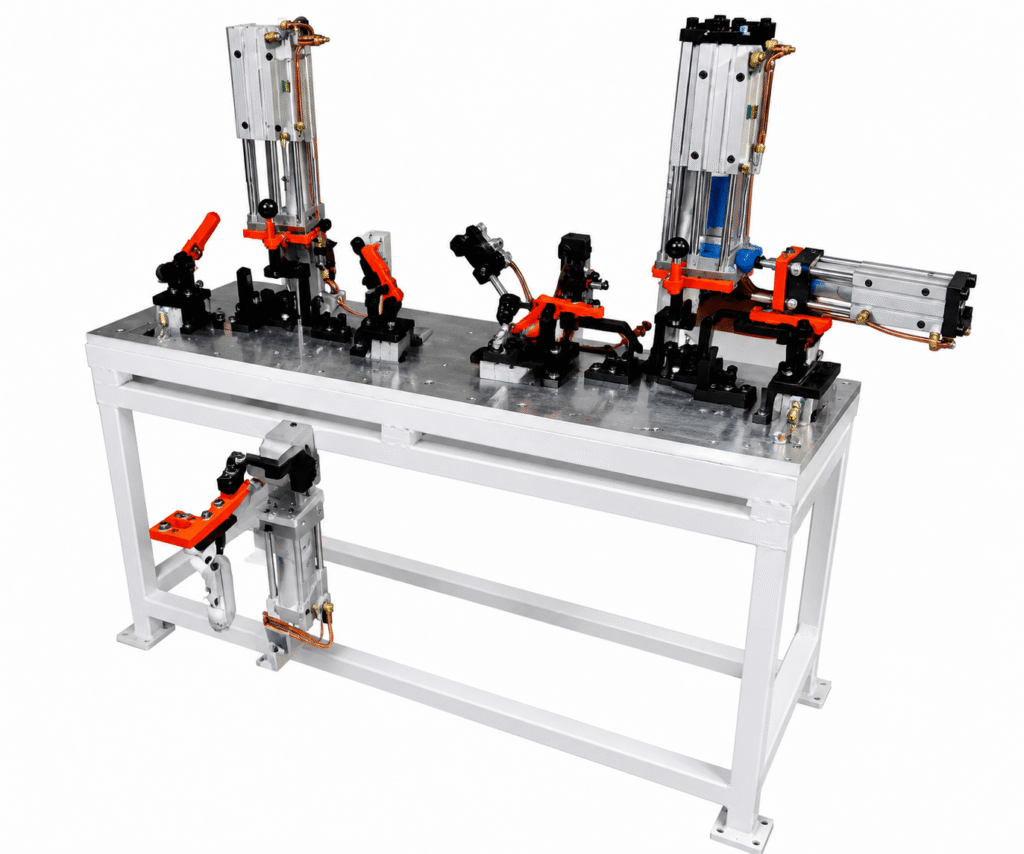

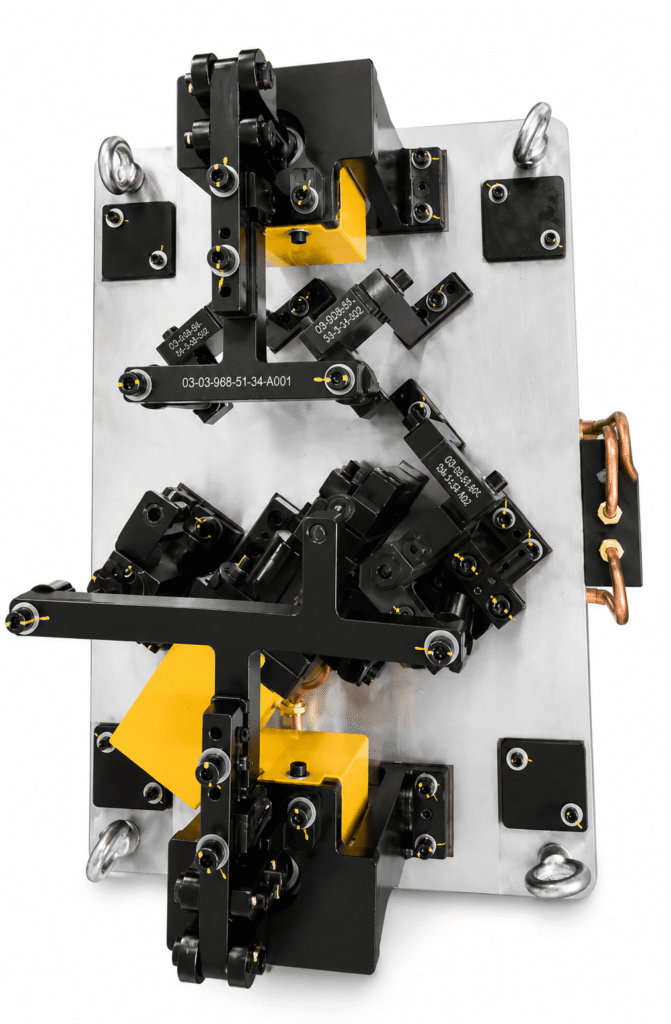

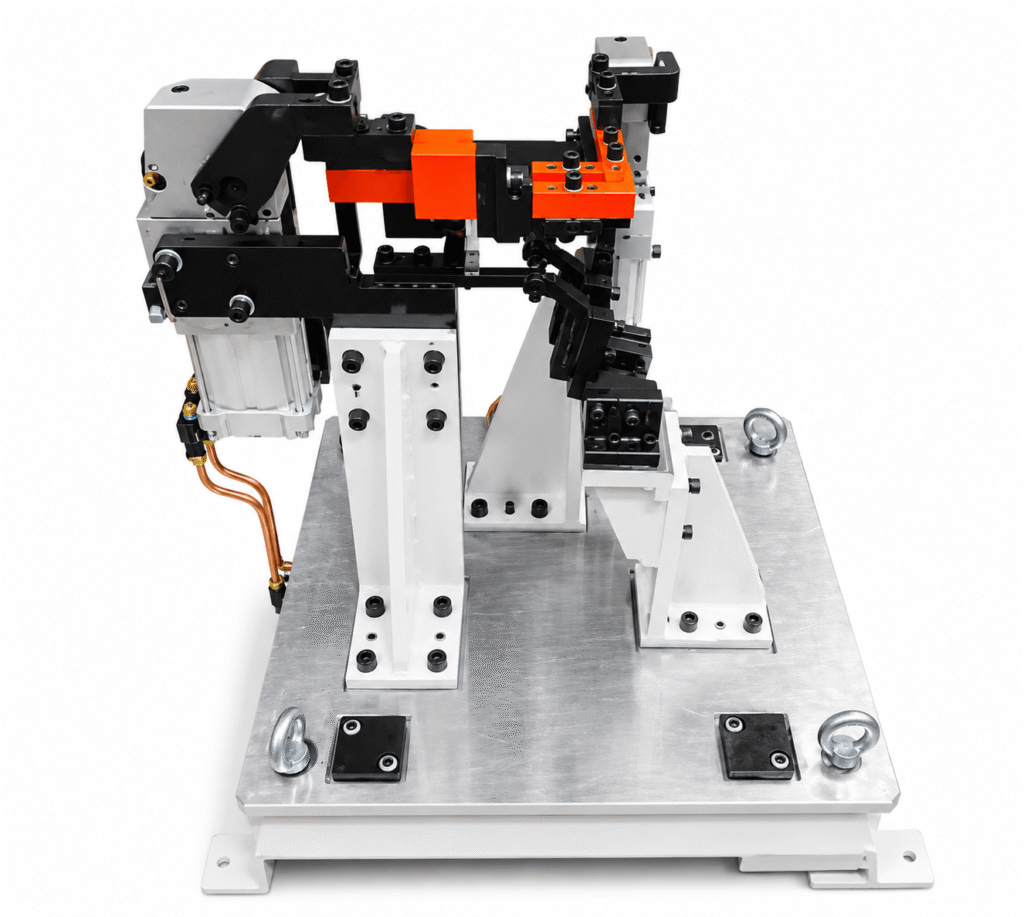

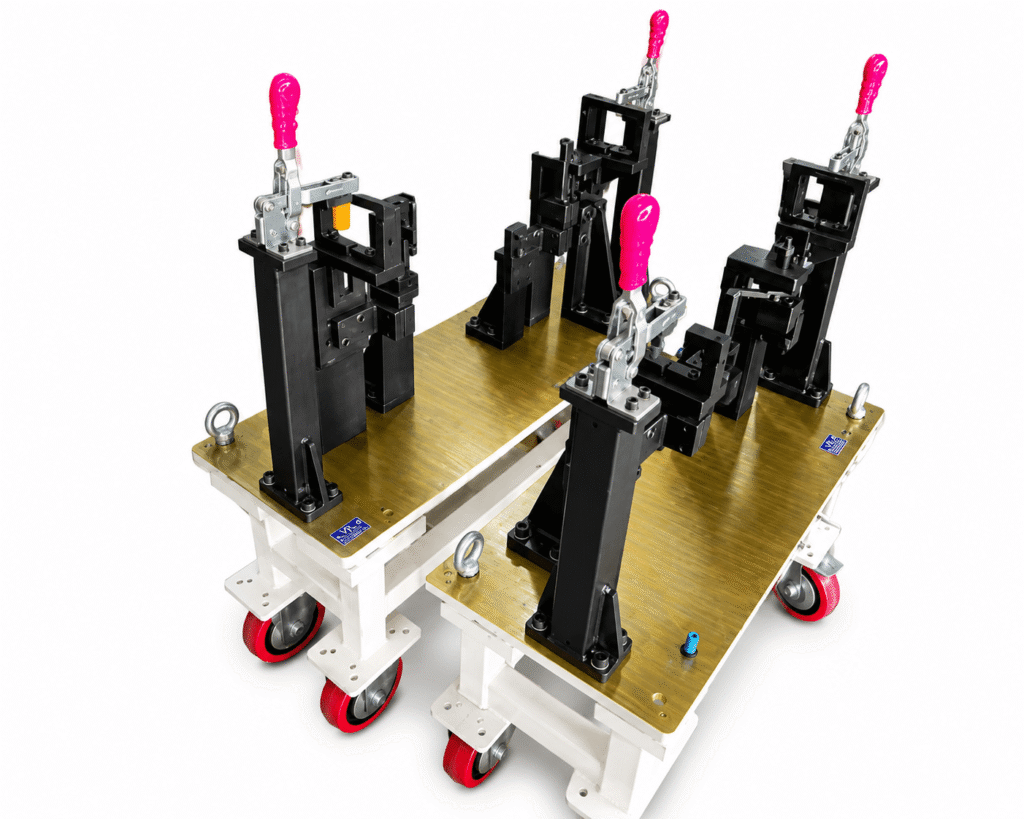

Fixture Type	Welding fixture
Clamping Type	Pneumatic
Machine Compatibility	Drilling machine, Milling machine, VMC, Lathe
Service Location	All India
Type of Fixture	Industrial
Material	Mild Steel
Max Workpiece Size	101-300 mm
Body Material	Mild steel
