Welding Jig Fixture

Name: Welding Jig & Fixture Manufacturer in Pune | India
Price: 70000.00 INR
Availability: InStock

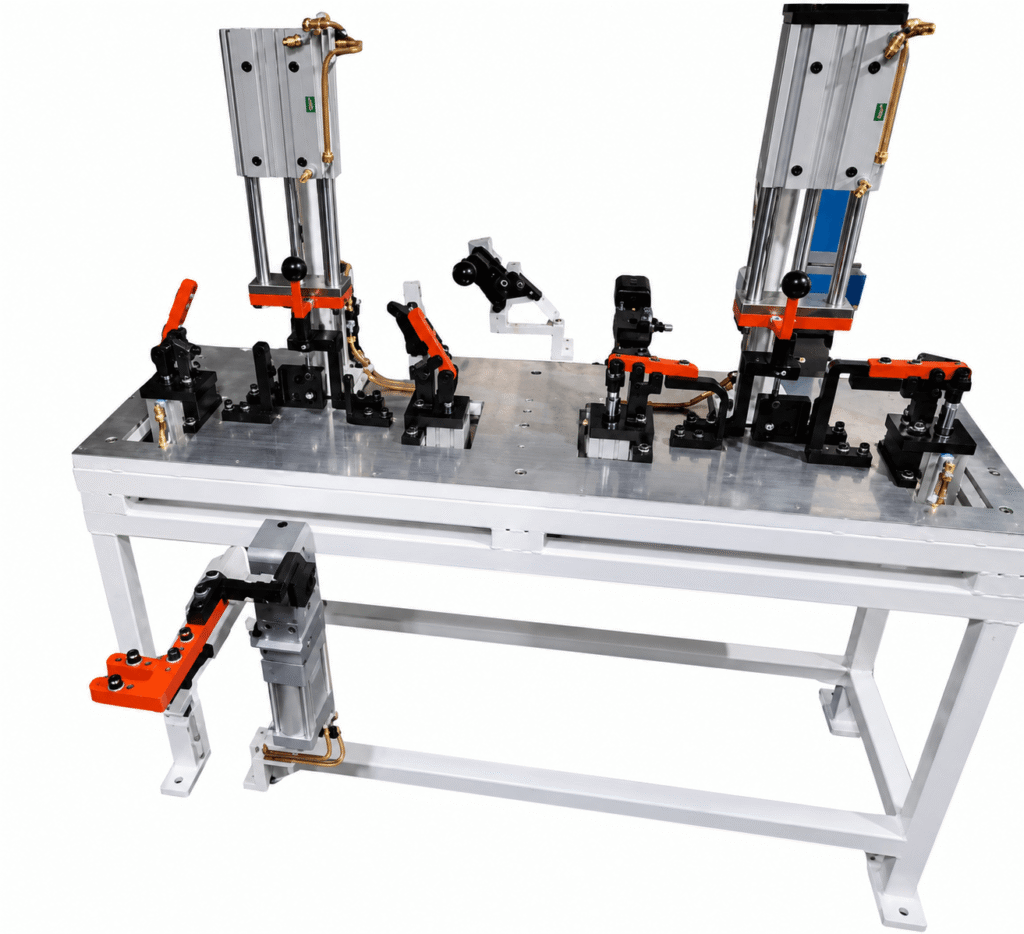

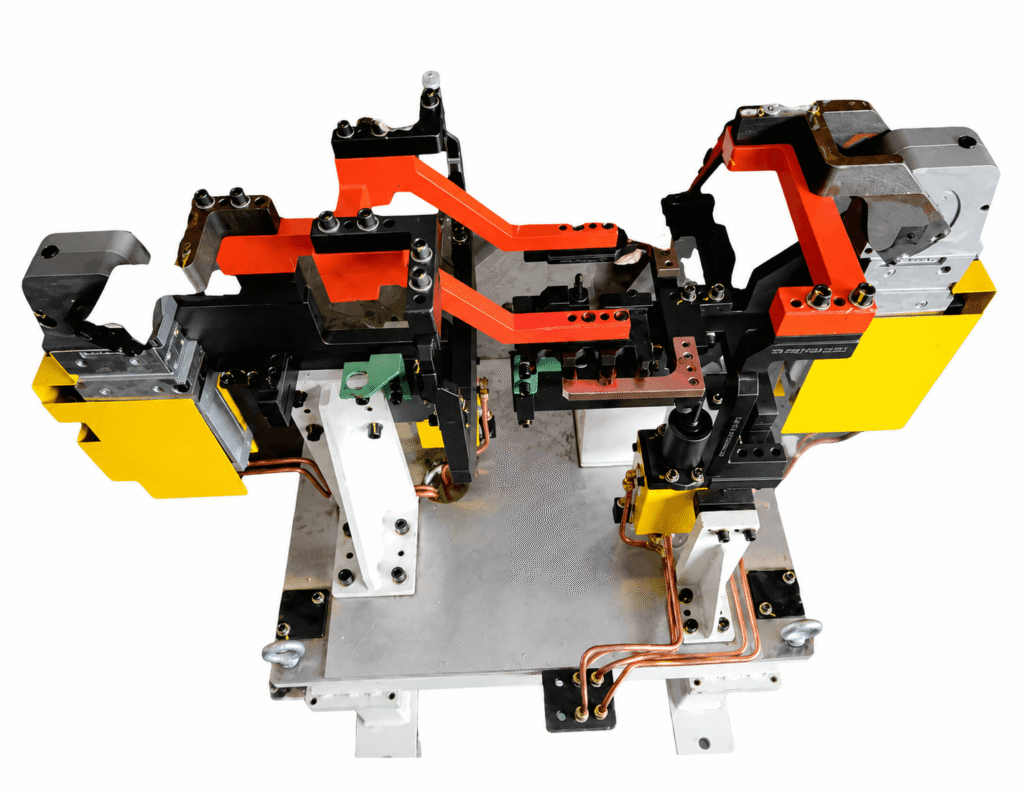

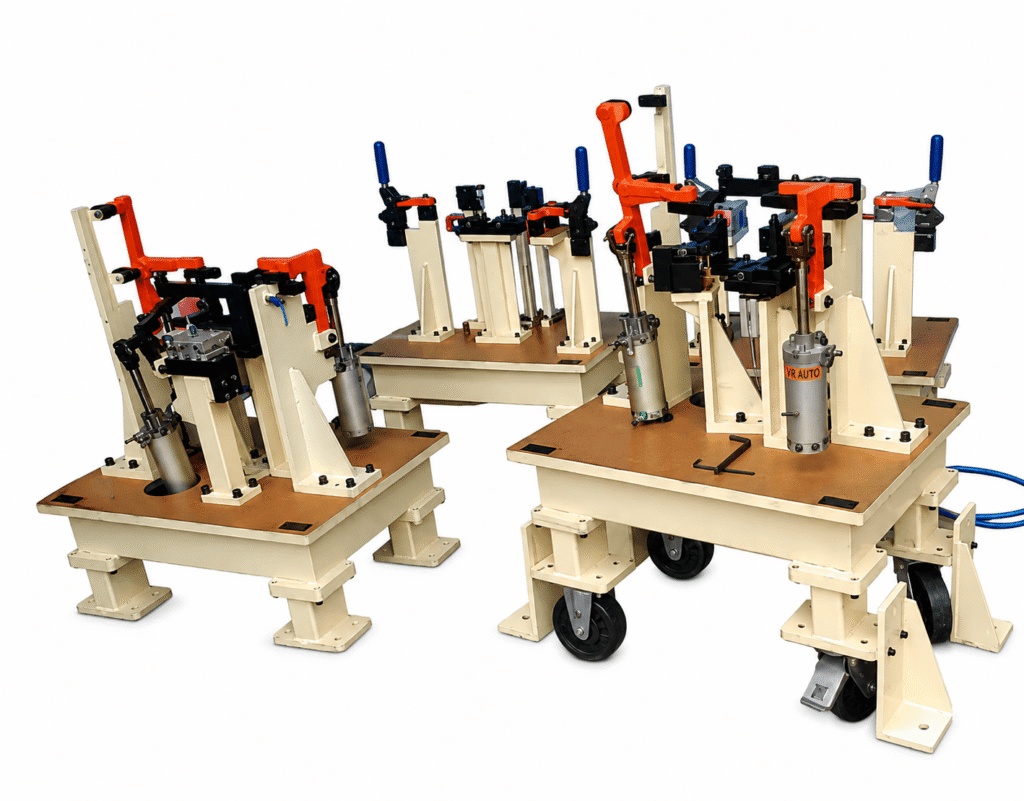

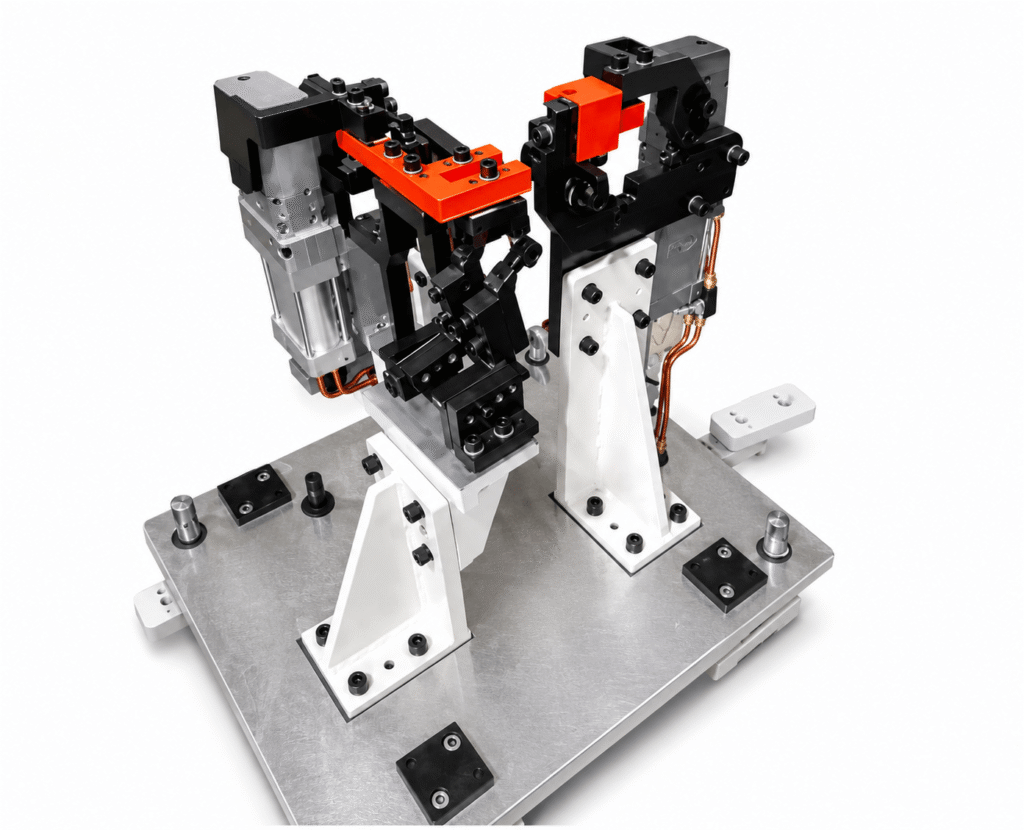

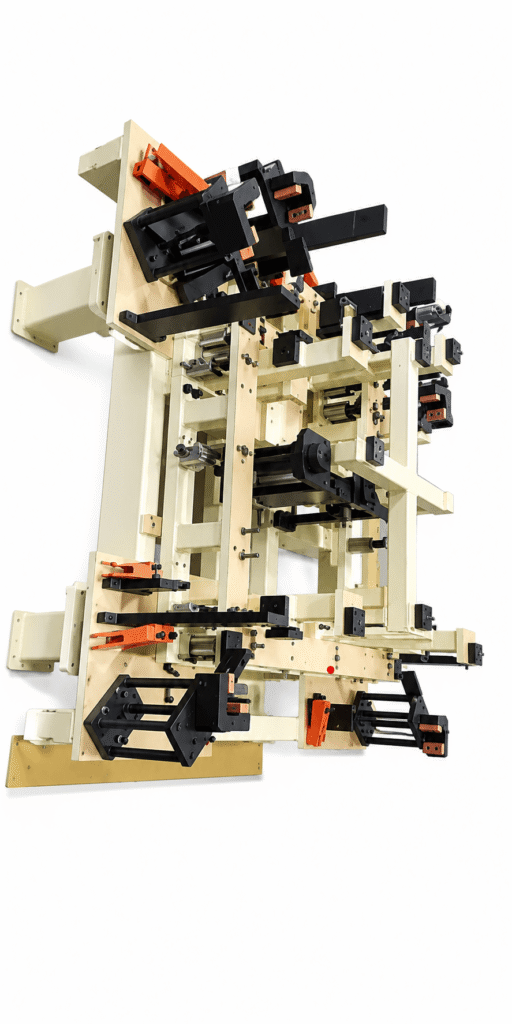

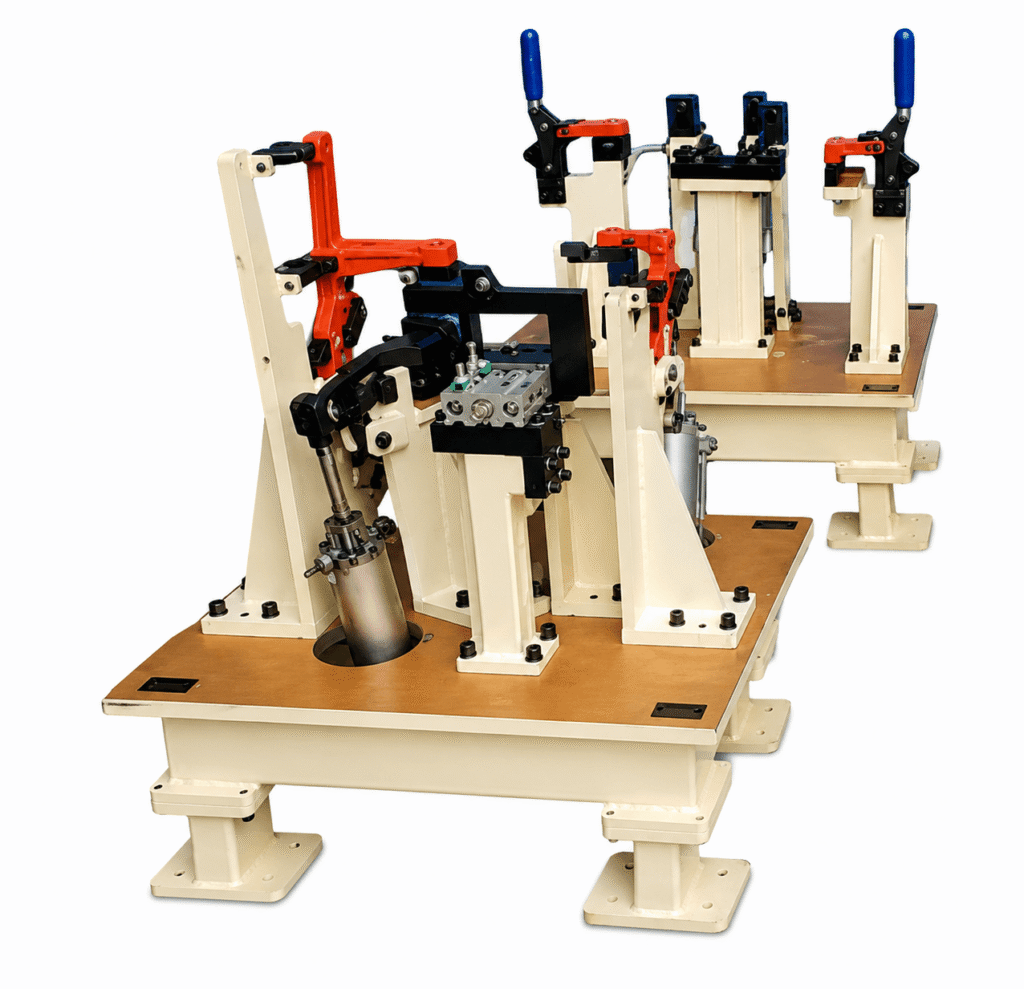

About the Welding Jig Fixture

A welding fixture has four jobs at once — locate, clamp, control distortion and give the torch access — and a design that gets three right still fails on the shop floor. Torch access is where most fixture designs are compromised.

Key Features

Datum scheme matching the component inspection drawing
Clamping sequence designed, not just clamping positions
Distortion anticipated and either restrained or pre-set against
Torch approach angle checked to every joint before the design is released
Toggle, pneumatic or hydraulic clamping to suit volume

Ideal For / Applications

Automotive body and chassis sub-assemblies
Sheet metal weldments
Pipe and tube assemblies
Structural fabrications
Prototype and low-volume weld tooling

Frequently Asked Questions

How is weld distortion controlled?

By combining clamping sequence, restraint placement and deliberate pre-set. We identify where heat will pull the assembly, restrain what must hold datum, and where restraint alone would lock in stress, pre-set the part so it relaxes to drawing.

What do you need to quote a welding fixture?

Component and assembly drawings with the datum scheme and weld symbols marked, the welding process, annual volume and cycle time, and any existing table or cell dimensions the fixture must suit.

Can it be validated before sign-off?

Yes. On critical assemblies we prove the fixture on trial parts and, where required, supply a qualification report measured against a master sample.
