Conveyor System — Assembly Line & Material Handling Conveyors

Name: Conveyor System Manufacturer in Pune | VR Automation
Price: 90000.00 INR
Availability: InStock

About the conveyer system

A conveyor system moves components between operations at a controlled rate, setting the rhythm of an assembly line rather than merely transporting parts. The component decides the conveyor: base condition, weight and whether work happens in transit all change the answer.

Key Features

Belt, roller, slat chain, pallet and indexing types built to the application
Frame material selected to the environment — mild steel or stainless
Indexing versions advance a fixed pitch so machine stations get a stationary, located part
Accumulation arrangements where parts must queue without back pressure
Sensing, guarding and PLC handshaking so machines run as a line, not as islands

Ideal For / Applications

Assembly line transfer between workstations
Inter-machine transfer around presses and riveting cells
Packaging and despatch lines
Component feeding into special purpose machines
Material handling between production areas

Frequently Asked Questions

Belt or roller conveyor?

A belt carries the part on a continuous surface, so it suits small, light, irregular or unstable parts and can run inclines. A roller conveyor needs a rigid flat base spanning at least three rollers, but allows accumulation and handles heavier loads with less drive power.

What is an indexing conveyor for?

It advances a fixed pitch then stops, so every station gets an identical dwell with the part stationary and located. Automated stations need that; a continuously moving belt cannot provide it.

Can it integrate with our existing machines?

Yes — most of our conveyor work is line integration, including the sensing, interlocks and PLC handshaking needed for existing machines to run as a line.

Need this machine for your component?

Send us the component drawing and joint specification. VR Automation quotes against your part, not a catalogue.

conveyer system ₹90,000.00

conveyer system

This item: conveyer system

₹90,000.00

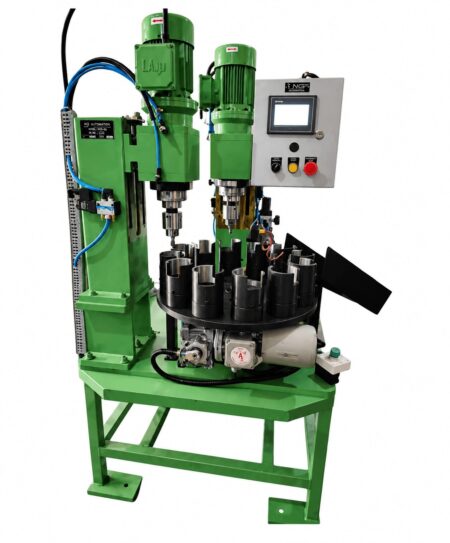

Index Riveting SPM

1 × Index Riveting SPM

₹44,000.00

Riveting Machine Model 05

1 × Riveting Machine Model 05

₹155,000.00

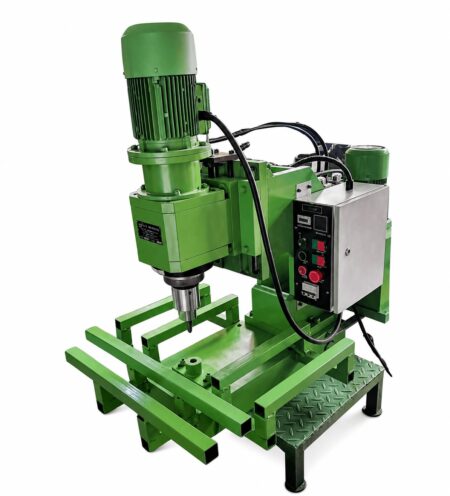

Non-STD Riveting Machine

1 × Non-STD Riveting Machine

₹50,000.00

portal c frame

1 × portal c frame

₹50,000.00

Conveyor Type	Belt Conveyor
Application Industry	Automotive, Manufacturing, Packaging, Assembly
Conveyor Length	1000 to 5000 mm
Conveyor Width	300 to 1000 mm
Belt Material	PVC / PU
Belt Speed	5 to 30 m/min
Load Capacity	Up to 100 kg
Frame Material	Mild Steel / Stainless Steel
Drive Type	Geared Motor
Motor Power	0.25 to 2 HP
Height Adjustment	Adjustable
Control System	VFD / Control Panel
