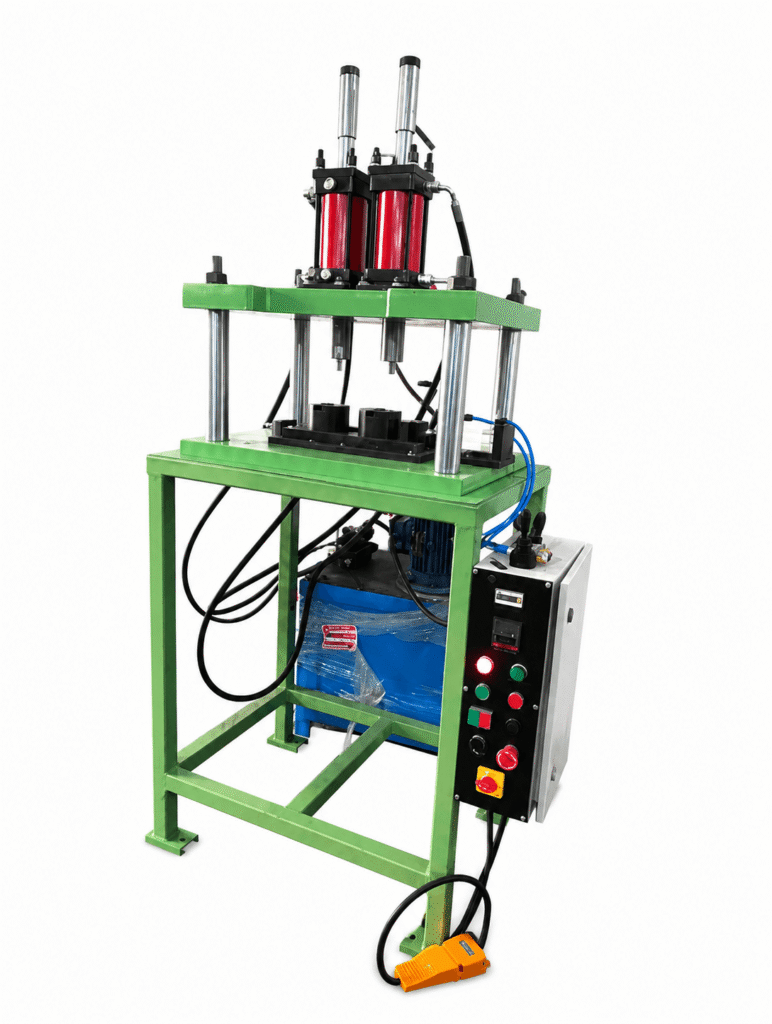

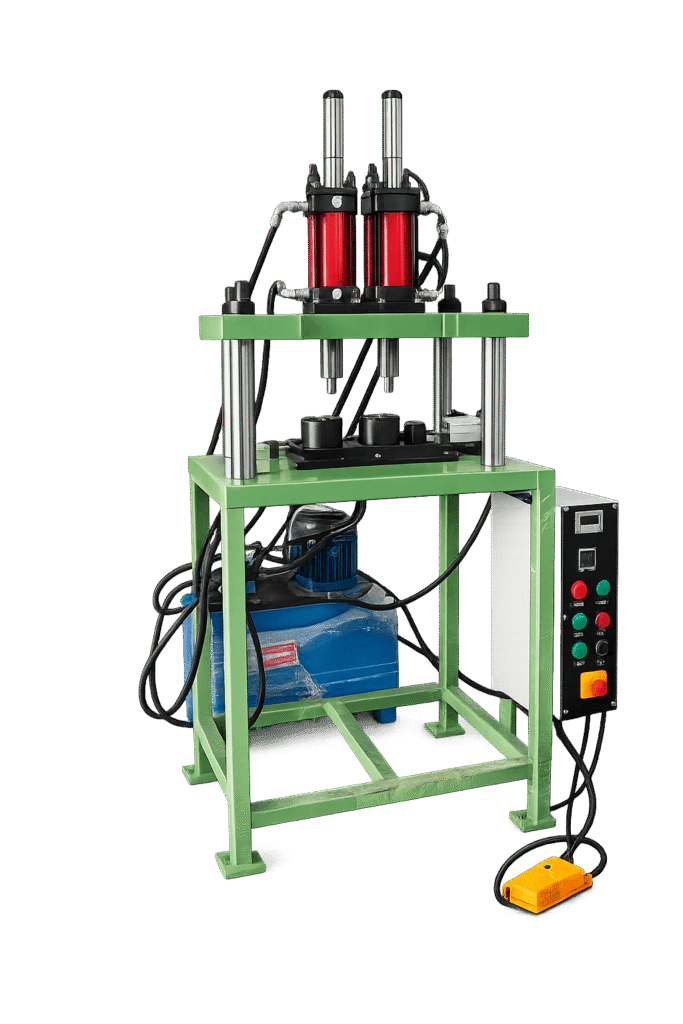

Heavy Duty Hydraulic Riveting Machine — Industrial Rivet Press

Name: Hydraulic Riveting Machine - VR Automation
Price: 195000.00 INR
Availability: InStock

About the Hydraulic Riveting Machine

A heavier hydraulic riveting press for larger rivets and more demanding duty than the standard hydraulic machine. Specified where frame rigidity and sustained force through the stroke are the limiting factors rather than cycle speed.

Key Features

Uprated frame and force class above the standard hydraulic riveter
Sustained force through the stroke for progressive forming of large rivets
Built around the component, with throat and daylight specified to the part
Rivet snaps and tooling manufactured to the rivet drawing
Controls specified to the duty — pedal, two-hand or PLC sequenced

Ideal For / Applications

Large solid rivet assemblies
Truck chassis, ladder frame and structural riveting
Heavy material handling equipment
Thick friction material and brake assemblies
Fabrications where a lighter press would deflect under load

Frequently Asked Questions

How does this differ from the standard hydraulic riveting machine?

It is the heavier duty build — a stiffer frame and a higher force class for larger rivets. Where a lighter frame would deflect and let the rivet form off-axis, this one holds alignment.

Can the throat depth be made to suit our part?

Yes. Throat, daylight and stroke are specified to the component rather than taken from a catalogue, which is often the deciding factor on large fabrications.

Is force monitoring available?

Yes, where the joint must be verified. A load cell and displacement sensor in the tool stack allow force and rivet height to be recorded per rivet for PPAP evidence.

Need this machine for your component?

Send us the component drawing and joint specification. VR Automation quotes against your part, not a catalogue.

Hydraulic Riveting Machine ₹195,000.00

Hydraulic Riveting Machine

This item: Hydraulic Riveting Machine

₹195,000.00

Pneumatic Orbital Spin Riveting Machine

1 × Pneumatic Orbital Spin Riveting Machine

₹90,000.00

portal c frame

1 × portal c frame

₹50,000.00

Pneumatic Riveting Machine

1 × Pneumatic Riveting Machine

₹85,000.00

Spin Riveting Machine

1 × Spin Riveting Machine

₹165,000.00

Machine Type	Hydraulic
Max Rivet Diameter	25 MM
Pressing Force	50 ton
Operation Mode	Manual
Rivet Type	Blind Rivet, Hollow Rivet, Semi Tubular, Solid Rivet
Motor Power	3 hp
Air Source Pressure	As per Requirement
Rotation Speed	As per Requirement

Hydraulic Riveting Machine
