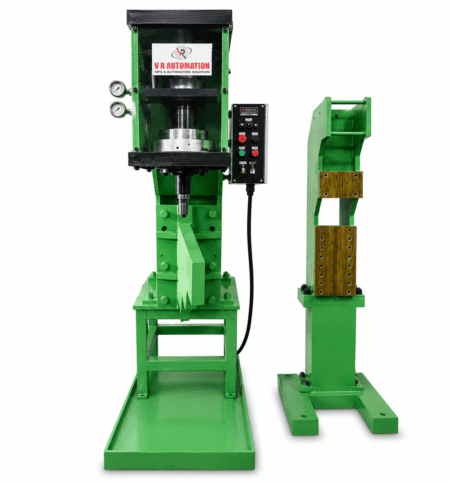

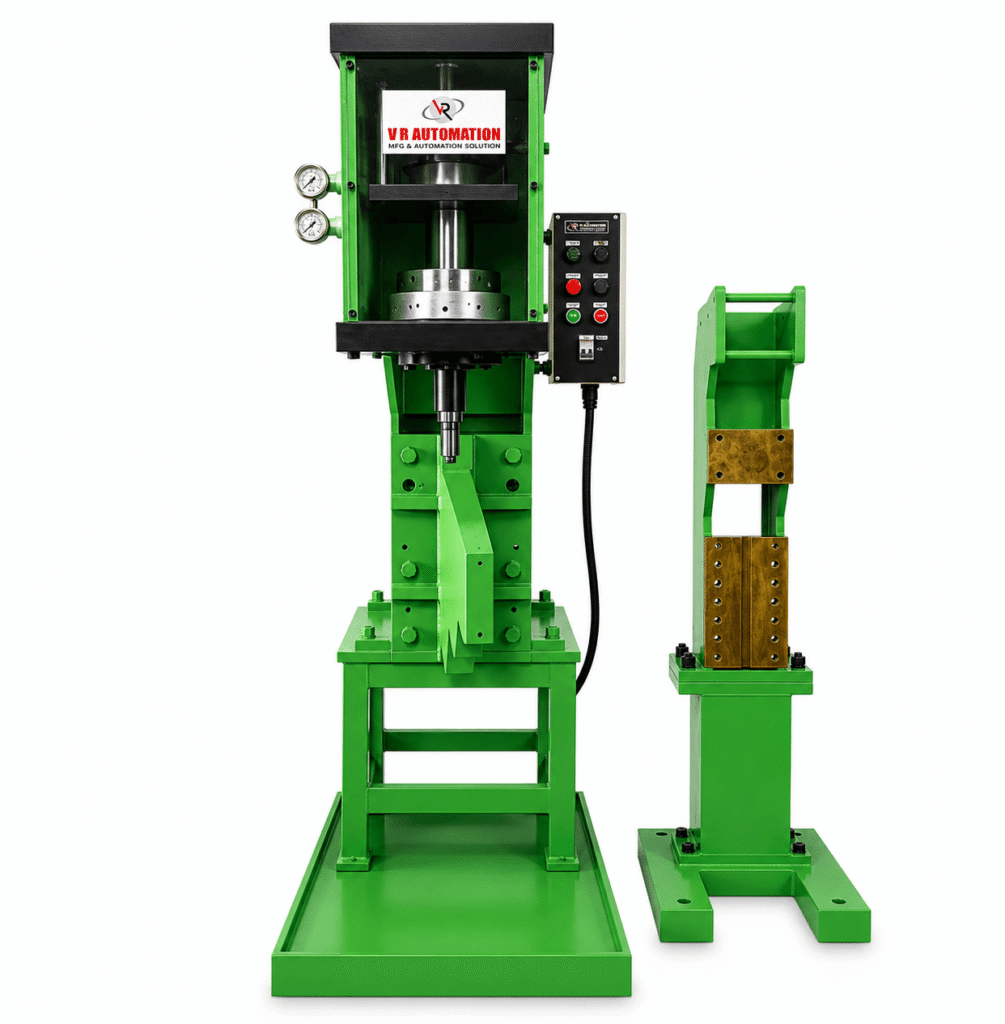

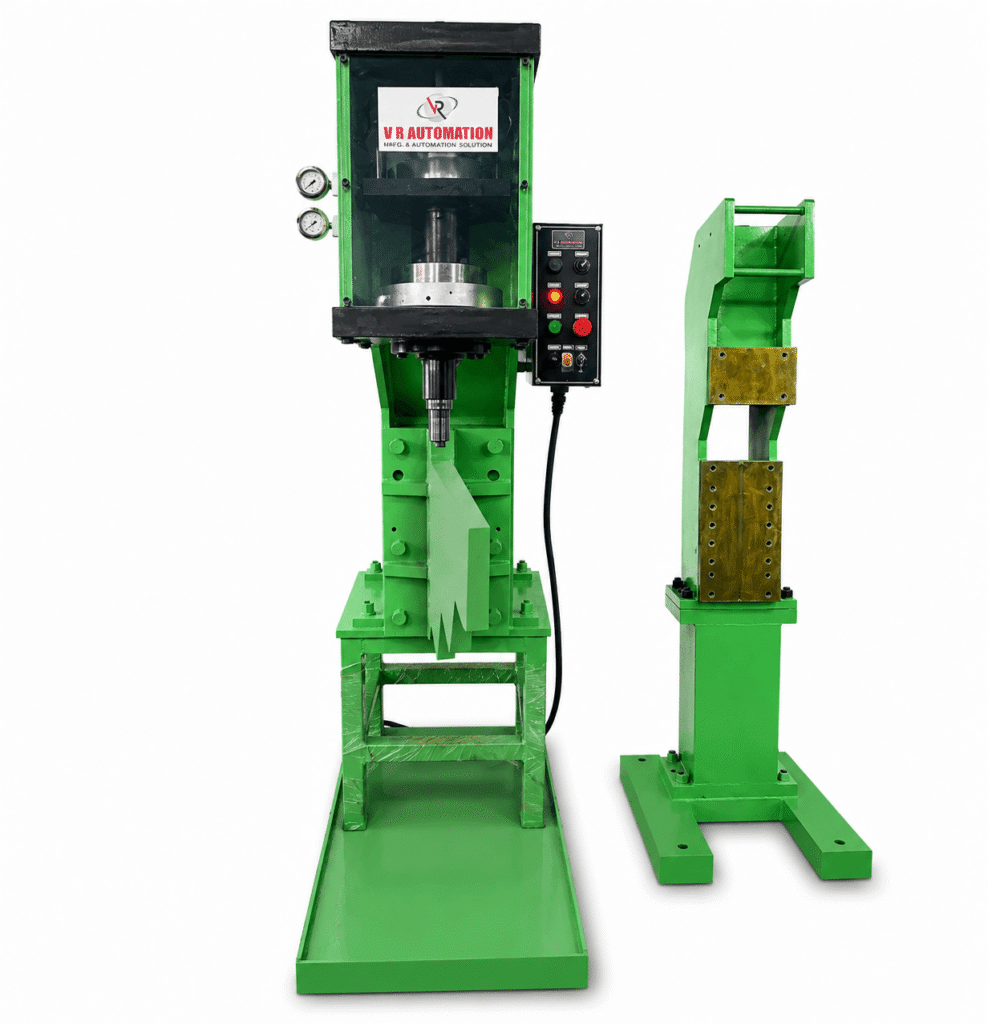

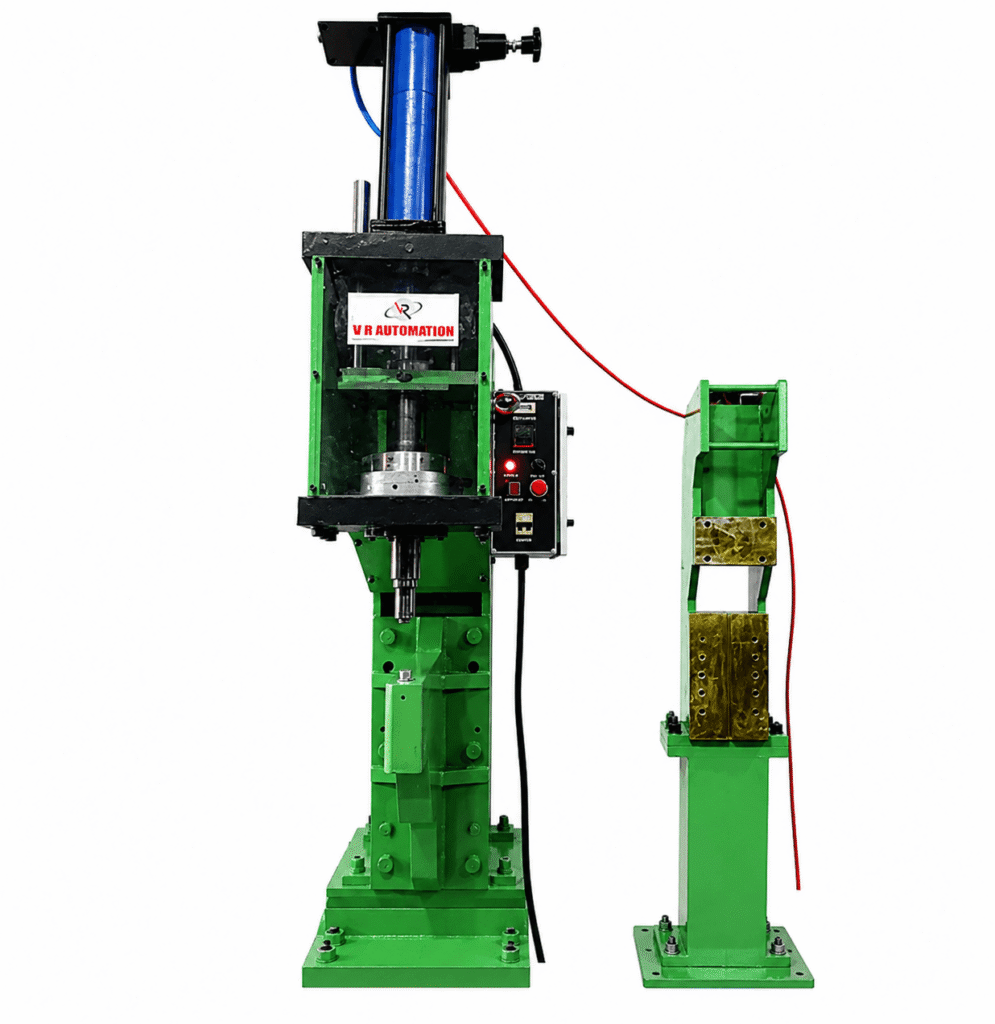

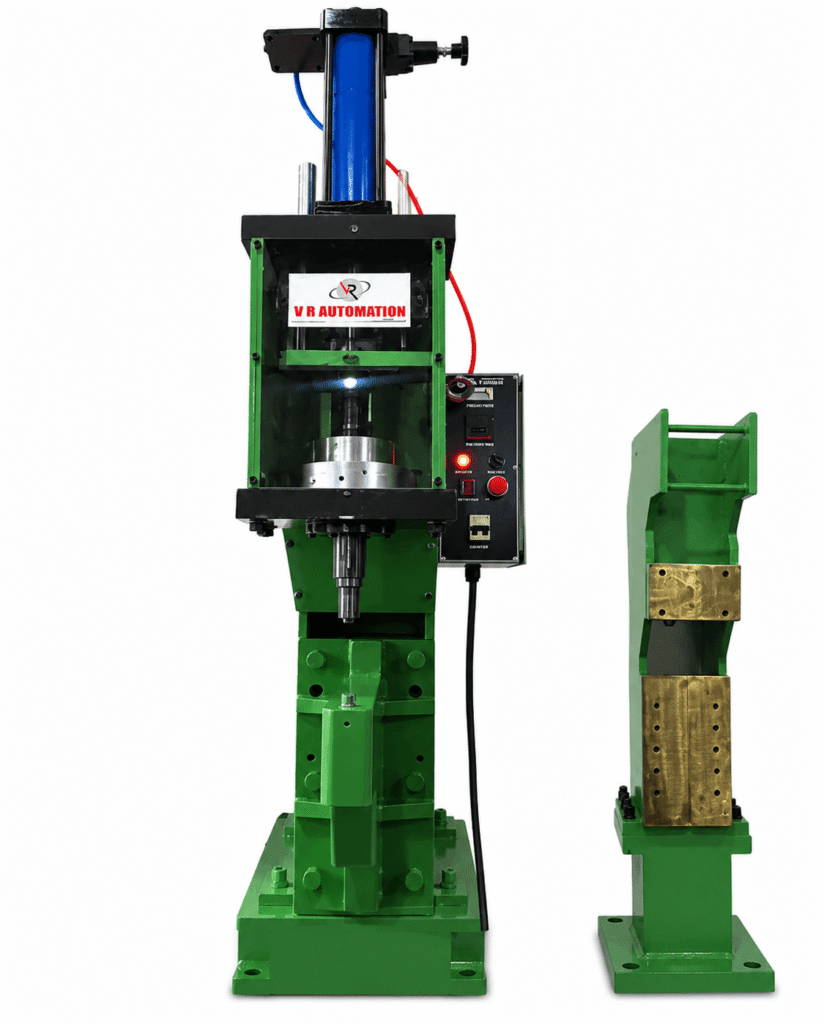

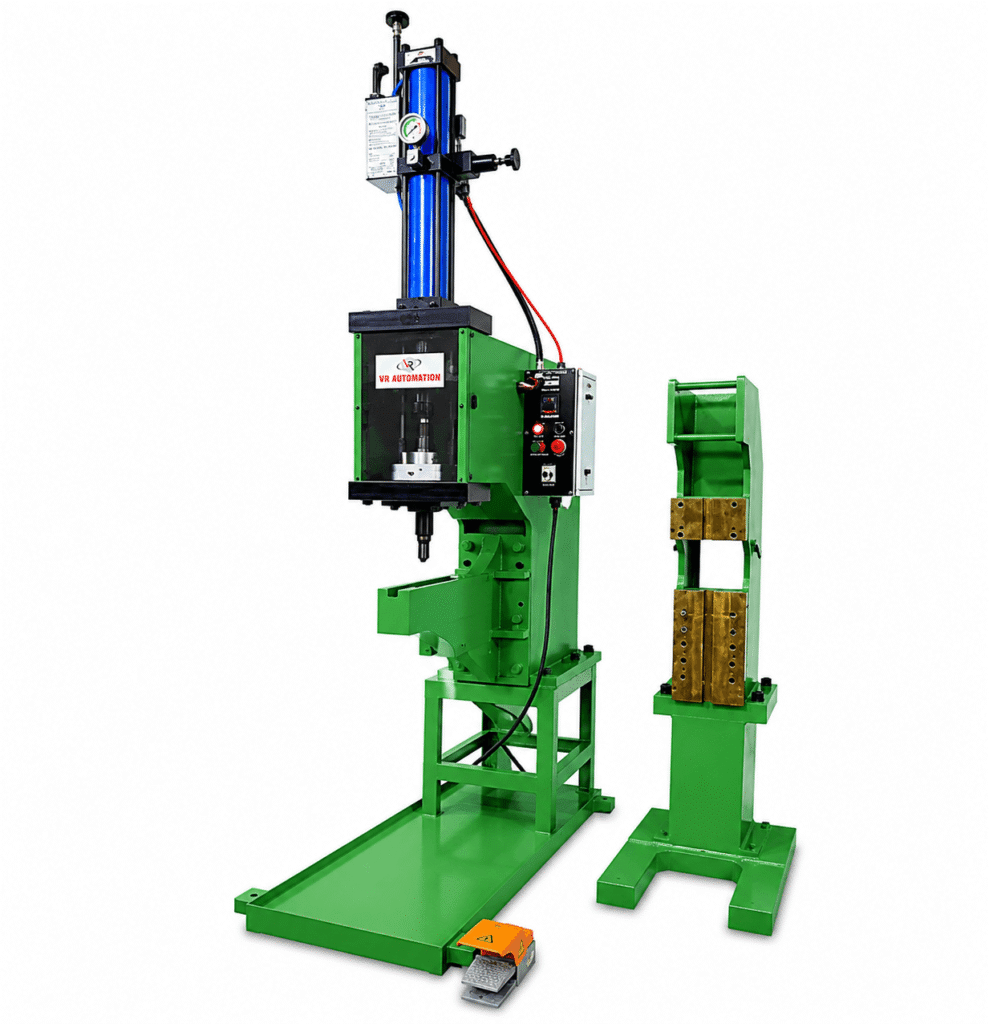

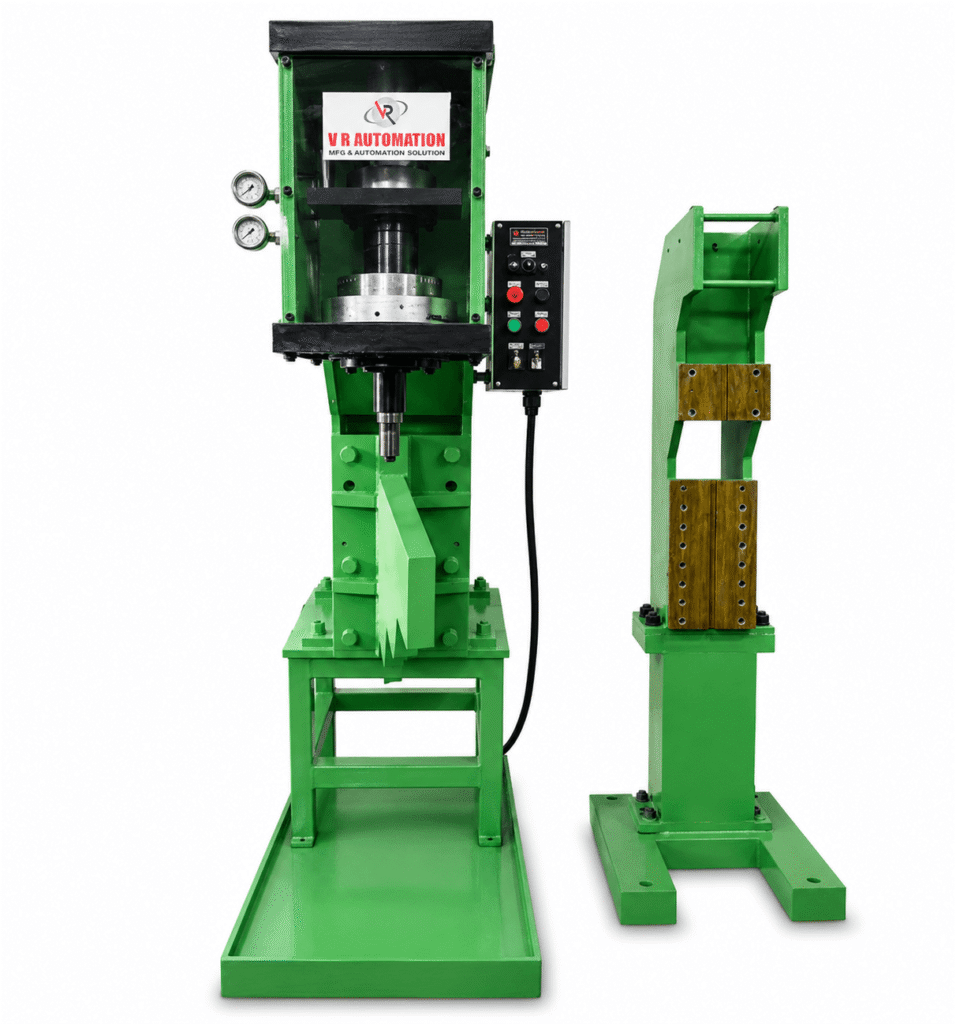

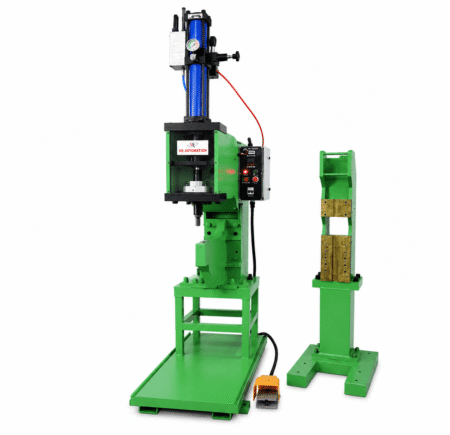

Self Clinching Machine

Name: Self Clinching Machine | PEM Nut Insertion Press India
Price: 180000.00 INR
Availability: InStock

About the Self Clinching Machine

A fastener insertion press that installs self-clinching hardware — nuts, studs and standoffs of the PEM type — into sheet metal. The fastener is pressed into a pre-punched hole and its knurled shank displaces sheet material into an undercut, creating a permanent threaded feature flush with the panel.

Key Features

Installs self-clinching nuts, studs and standoffs in one controlled stroke
Controlled insertion force so the fastener seats fully without dishing the panel
Tooling changed per fastener size and type
Produces a threaded feature flush with the sheet face, unlike a welded nut
No heat, so coated and pre-painted panels are unaffected

Ideal For / Applications

Electronics chassis and instrument enclosures
Server racks and 19-inch cabinet panels
Control panels and switchgear mounting plates
Appliance and automotive sheet metal needing serviceable threads
Any panel too thin to tap directly

Frequently Asked Questions

What is a self-clinching fastener?

A fastener designed to be pressed into ductile sheet metal rather than welded or screwed. Its knurled shank and undercut displace sheet material, locking it against rotation and pull-out and leaving a permanent thread in a panel too thin to tap.

Does the sheet need a pre-punched hole?

Yes, and hole size matters. The hole must match the fastener specification closely — oversize and the fastener spins, undersize and the panel dishes around it.

Can it install fasteners into stainless steel?

It depends on the fastener grade relative to the panel. Self-clinching relies on the panel being more ductile than the fastener, so stainless panels need a correspondingly harder fastener — send the panel grade and fastener part number and we will confirm.
