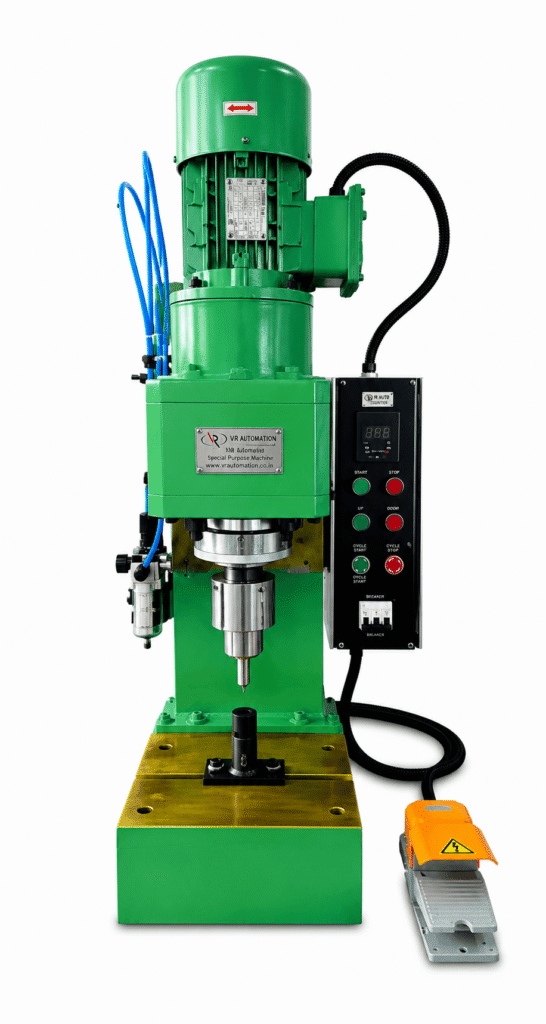

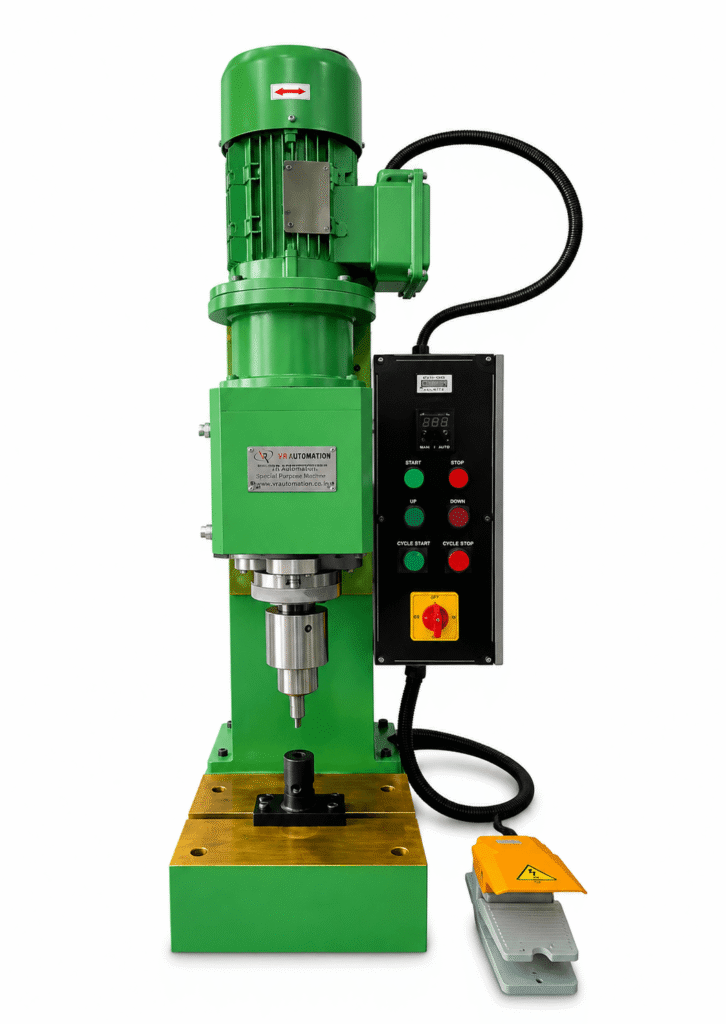

Riveting Pneumatic Machine

Name: Pneumatic Rivet Press Machine Manufacturer | India
Price: 120000.00 INR
Availability: InStock

About the Riveting Pneumatic Machine

An air-operated riveting press for production assembly, setting the rivet in a single controlled stroke from the shop air supply. Suited to the 0.5 to 3 tonne band where a pneumatic cylinder delivers the force directly, with no hydraulics to maintain.

Key Features

Direct pneumatic actuation from the existing compressed air line
Sets solid, tubular and semi-tubular rivets with tooling changed to suit
Foot pedal or two-hand control, specified against the operator reach into the tooling zone
Rigid frame so the rivet forms squarely rather than drifting under load
Low running cost and simple field maintenance

Ideal For / Applications

Sheet metal bracket and cover assembly
Hardware, hinge and latch assembly
Cookware and kitchenware handle riveting
Light automotive and appliance sub-assemblies
General jobbing work with mixed rivet sizes

Frequently Asked Questions

Which rivet types can it set?

Solid, tubular and semi-tubular rivets, with the tooling changed to suit. Blind and pop rivets use a pulling tool rather than a forming press.

What decides the force needed?

Rivet diameter and rivet material, primarily. Send the rivet drawing or a sample and we will size the machine rather than have you guess a tonnage.

Can it be built into an automated cell?

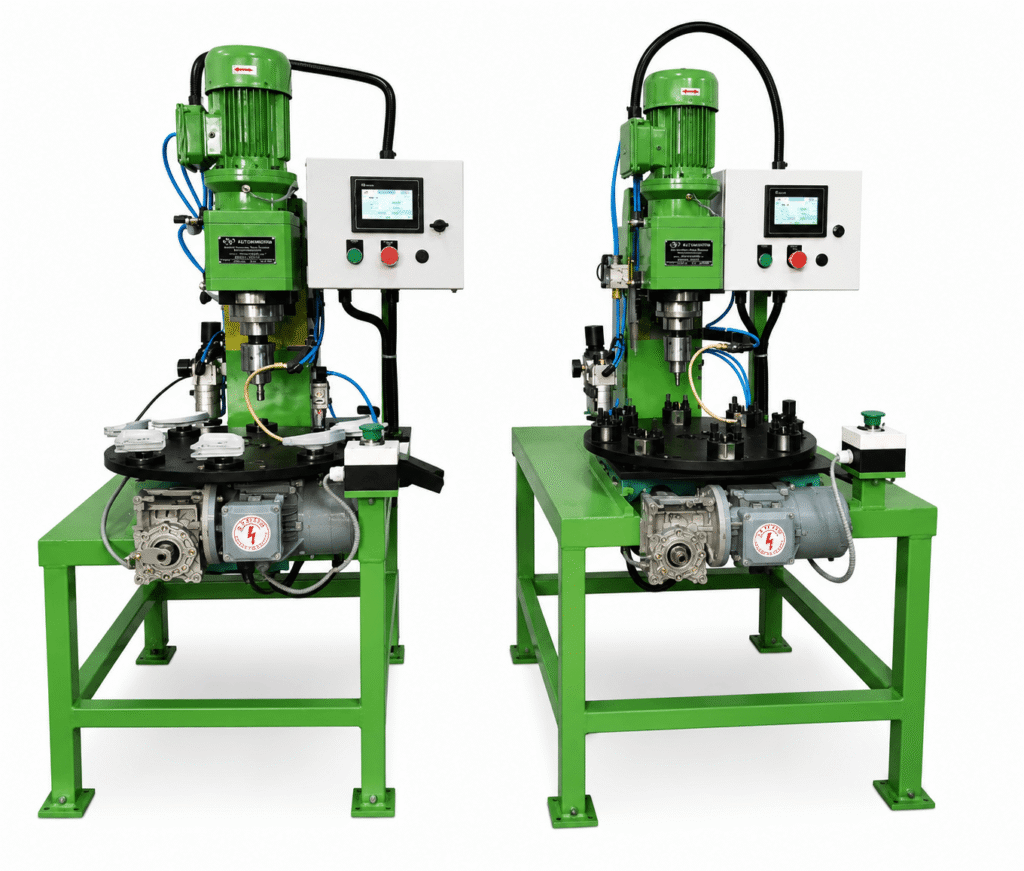

Yes. The head can be integrated into a special purpose machine or index table, with part-presence sensing and force or height monitoring where the joint has to be verified.

Need this machine for your component?

Send us the component drawing and joint specification. VR Automation quotes against your part, not a catalogue.

Riveting Pneumatic Machine ₹120,000.00

Riveting Pneumatic Machine

This item: Riveting Pneumatic Machine

₹120,000.00

Clinching Press Machine

1 × Clinching Press Machine

₹175,000.00

Hand Clinching Machine

1 × Hand Clinching Machine

₹155,000.00

Self Clinching Machine

1 × Self Clinching Machine

₹180,000.00

Sheet Metal Clinching Machine

1 × Sheet Metal Clinching Machine

₹215,000.00

Rivet Diameter	8–10 mm
Stroke Length	30 mm
Air Pressure	5 bar
Throat Depth	150 mm
Machine type	Pneumatic
Power Consumption	3 Phase
Brand	VRA
Body Material	Mild Steel
