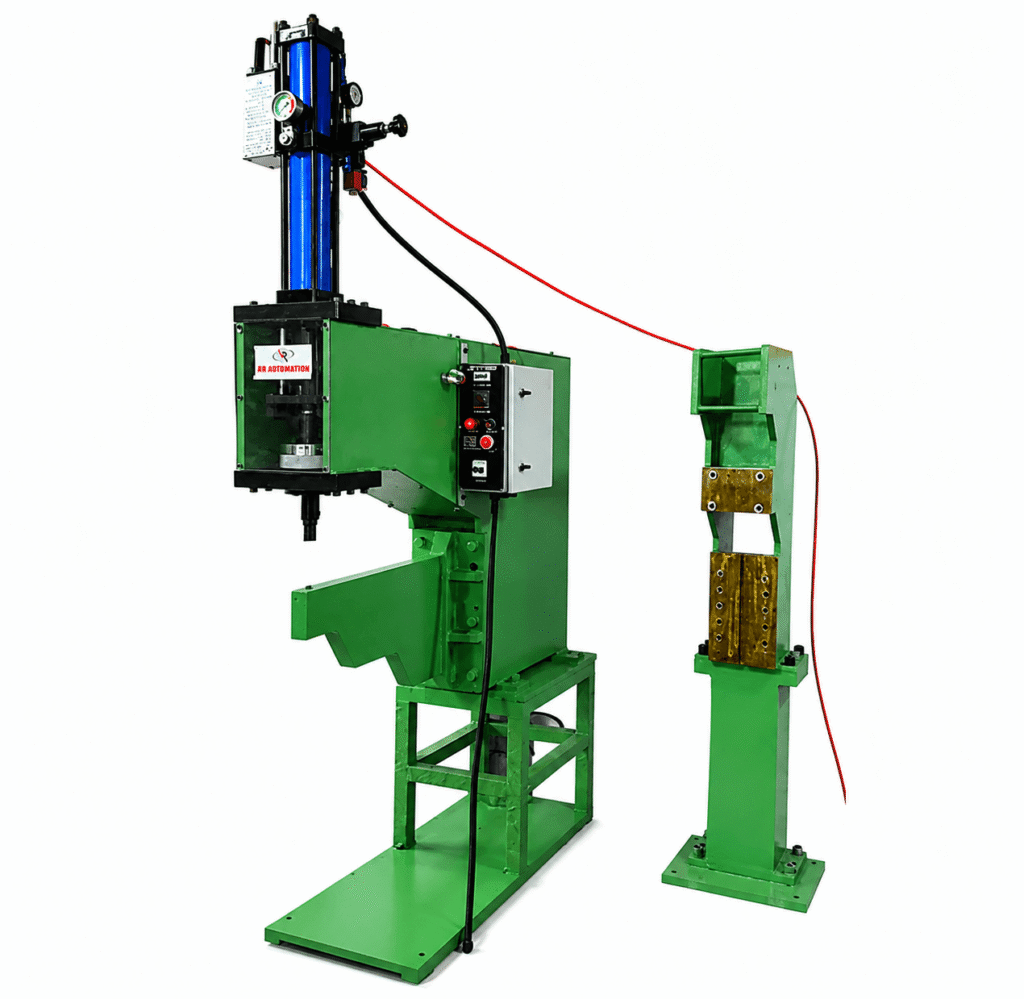

Clinching Press Machine (Column Type) — Pneumatic Sheet Metal Joining

Name: Clinching Press Machine Manufacturer in India | C-Frame
Price: 175000.00 INR
Availability: InStock

About the Clinching Press Machine

A column-type pneumatic clinching press for production cells that join sheet metal in a fixed station. The punch draws the upper sheet into the die and the material cold-flows into an interlocking button, so the joint is made from the parent metal with no rivet, no fastener and no heat.

Key Features

Rigid column frame with the tool station at a fixed working height for repeatable operator loading
Pneumatic actuation from ordinary shop air — no hydraulic power pack, no standing power draw
Round-point punch and die tooling matched to your sheet stack and joint diameter
Cold-forming process: no heat-affected zone, no fume, no spatter, no consumables per joint
Joint verified non-destructively by neck thickness, so no destructive peel test is needed

Ideal For / Applications

Electrical enclosure and switchgear panel bodies
Galvanised and pre-painted sheet where a weld would burn the coating
Brackets, mounting plates and light fabricated assemblies
Stainless steel cabinet and chassis work
Any line replacing spot welding to remove electrode and consumable cost

Frequently Asked Questions

How is this different from the foot-operated clinching press?

This is the column-type machine: a fixed working height and a compact footprint, suited to a seated or standing operator working a single joint position. The foot-operated version adds a wide work platform and a pedal so both hands stay free to hold larger panels.

Does clinching need rivets or any consumable?

No. The joint is formed from the sheet material itself, so there is no rivet, screw or weld consumable and no cost per joint beyond tooling wear.

Can it join galvanised or pre-painted sheet?

Yes, and this is the main reason fabricators move to clinching. The coating deforms with the base metal instead of burning off, so corrosion protection is largely retained across the joint.
