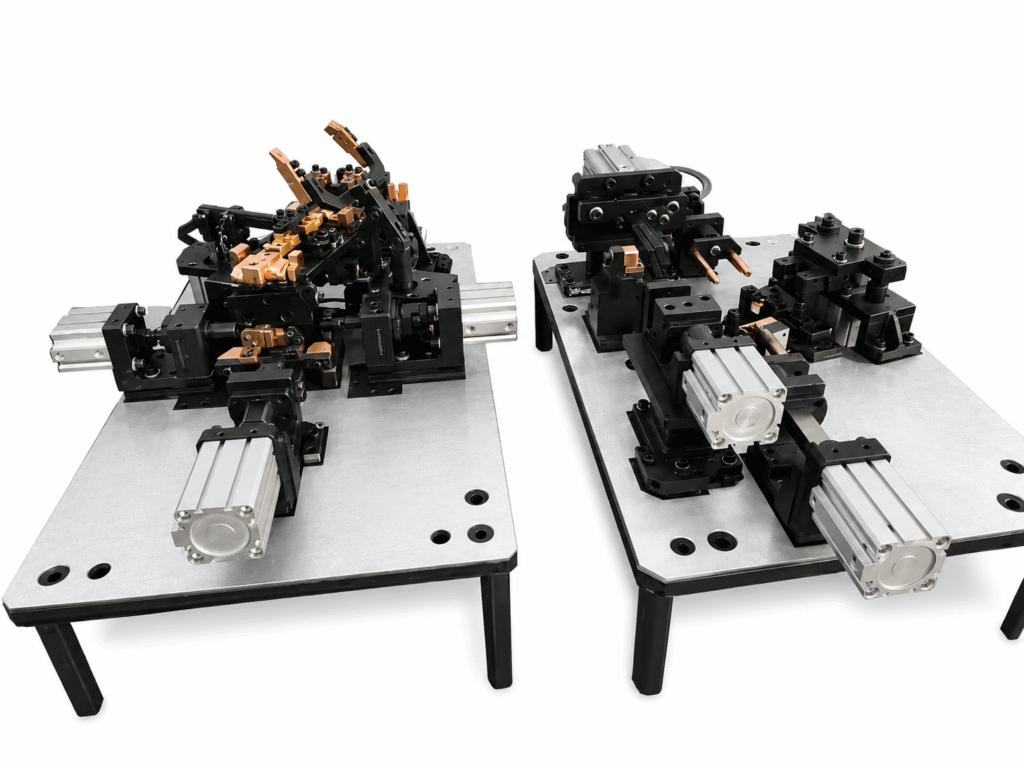

Welding and Robotic Fixtures

Name: Welding And Robotic Fixtures - VR Automation
Price: 150000.00 INR
Availability: InStock

About the Welding And Robotic Fixtures

A robotic welding fixture cannot rely on a welder to adapt. The robot welds the programmed path whether or not the part is where it should be, so the fixture must deliver the repeatability the robot assumes — with sensing to confirm it before the cycle starts.

Key Features

Tighter locating tolerances than a manual jig, matched to robot repeatability
Part-presence and clamp-confirmation sensing fed back to the robot controller
Interference checked against the torch and cable package through the full programmed path
Pneumatic power clamping with sequence control
Designed against your actual robot reach envelope and cell layout

Ideal For / Applications

Robotic welding cells in automotive component manufacture
Two-station and turntable cells for load-while-weld operation
Positioner-mounted fixtures holding through rotation and tilt
Sheet metal and tubular weldments in volume
Conversion of manual welding operations to robotic

Frequently Asked Questions

Why can a robotic fixture not be the same as a manual jig?

Because a welder adapts and a robot does not. The robot follows its programmed path regardless, so the fixture must guarantee the part position rather than allowing the operator to nudge it right.

Do you need our robot details?

Yes — make, model, reach, torch and cable package, plus the positioner and cell layout. The fixture has to be designed inside that actual reach envelope, not a generic one.

What sensing is typically fitted?

Part presence, part orientation and clamp confirmation as a minimum, interlocked so the robot cannot start a cycle on a wrongly loaded or unclamped part.

Need this machine for your component?

Send us the component drawing and joint specification. VR Automation quotes against your part, not a catalogue.

Fixture Type	Jig Table Fixture
Output Current	as per requirement
Application	Automotive
Clamping Type	Pneumatic Clamp, Manual Clamp, Hydraulic Clamp, Toggle Clamp
Base Material	Mild Steel
Fixture Size	Above 3×3 m
Adjustment	Fixed
Material	Mild Steel

Explore More Products

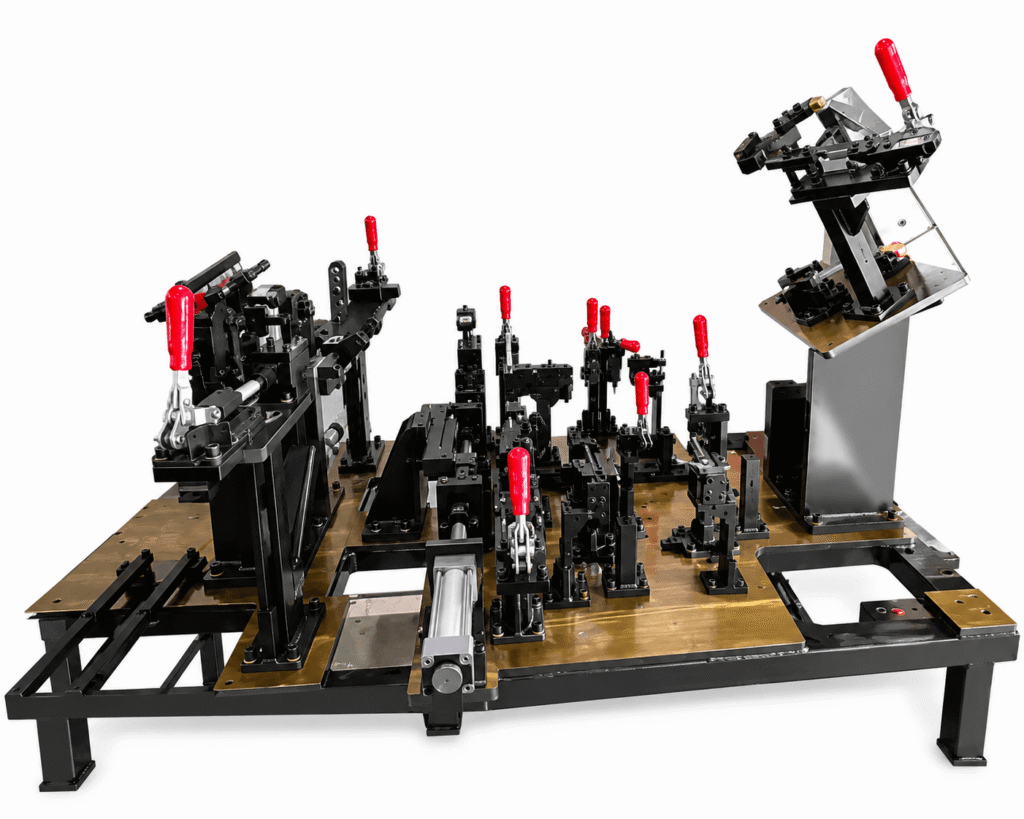

Welding Fixtures And Robotics

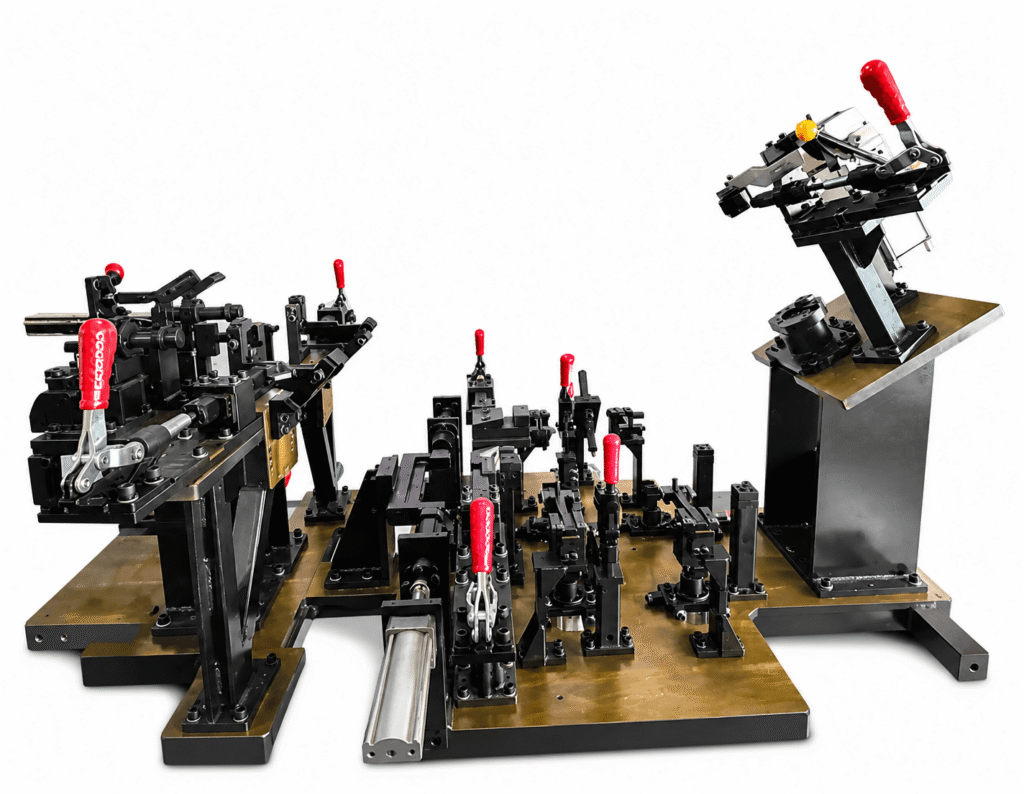

Robot Welding Fixtures
