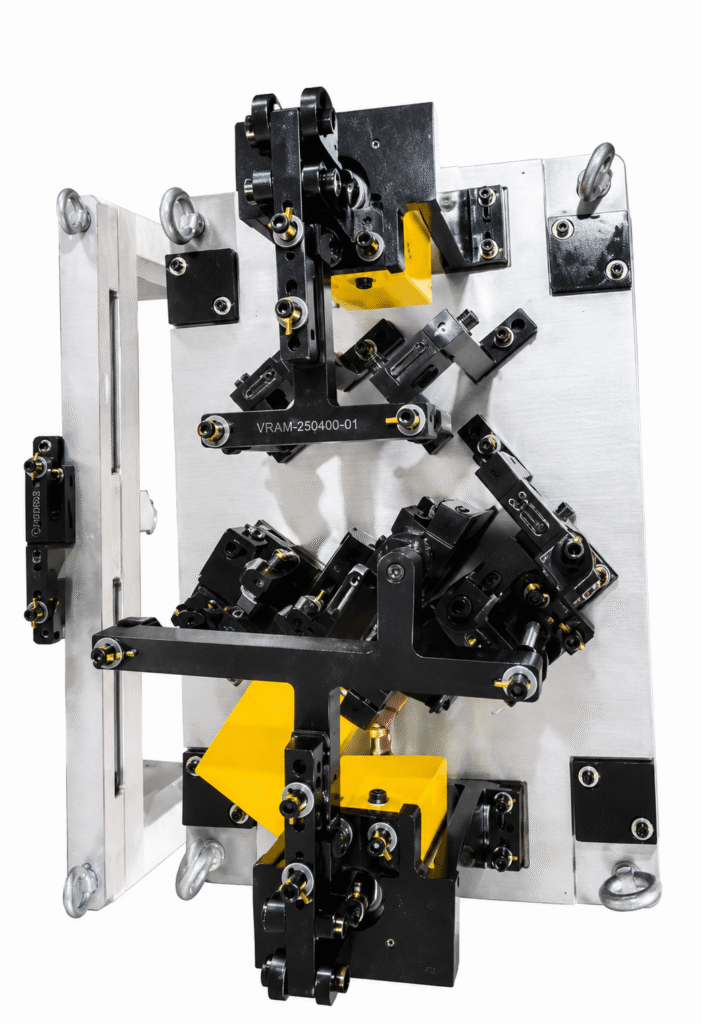

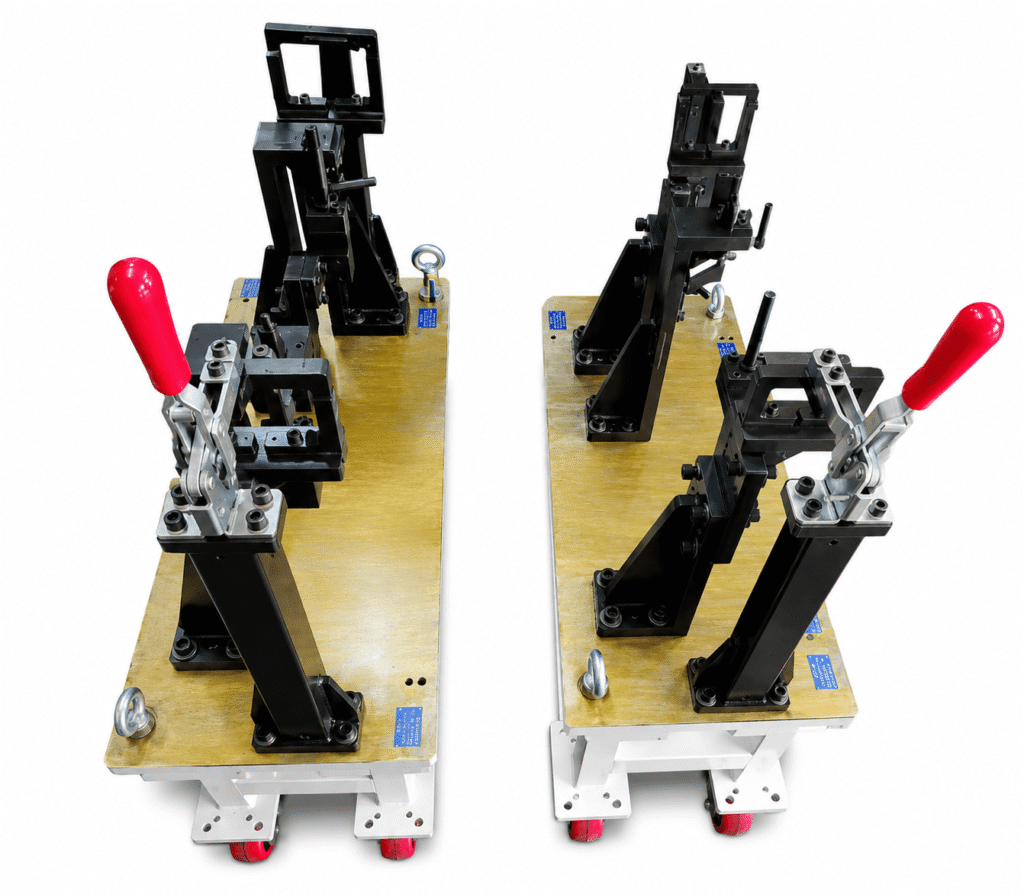

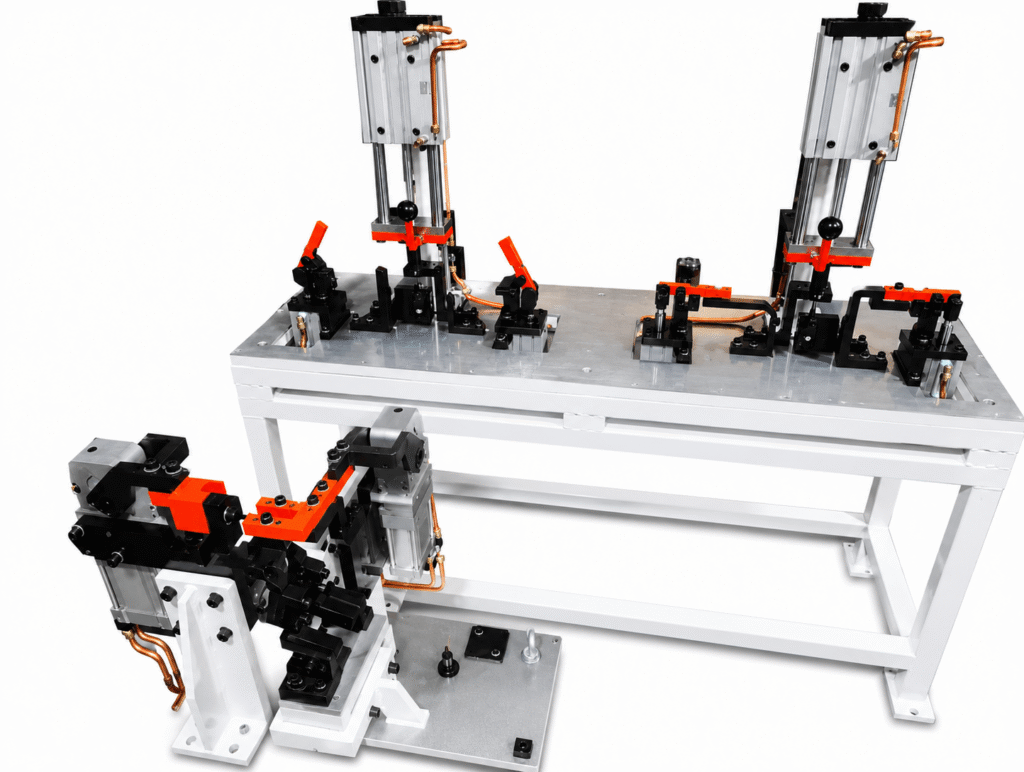

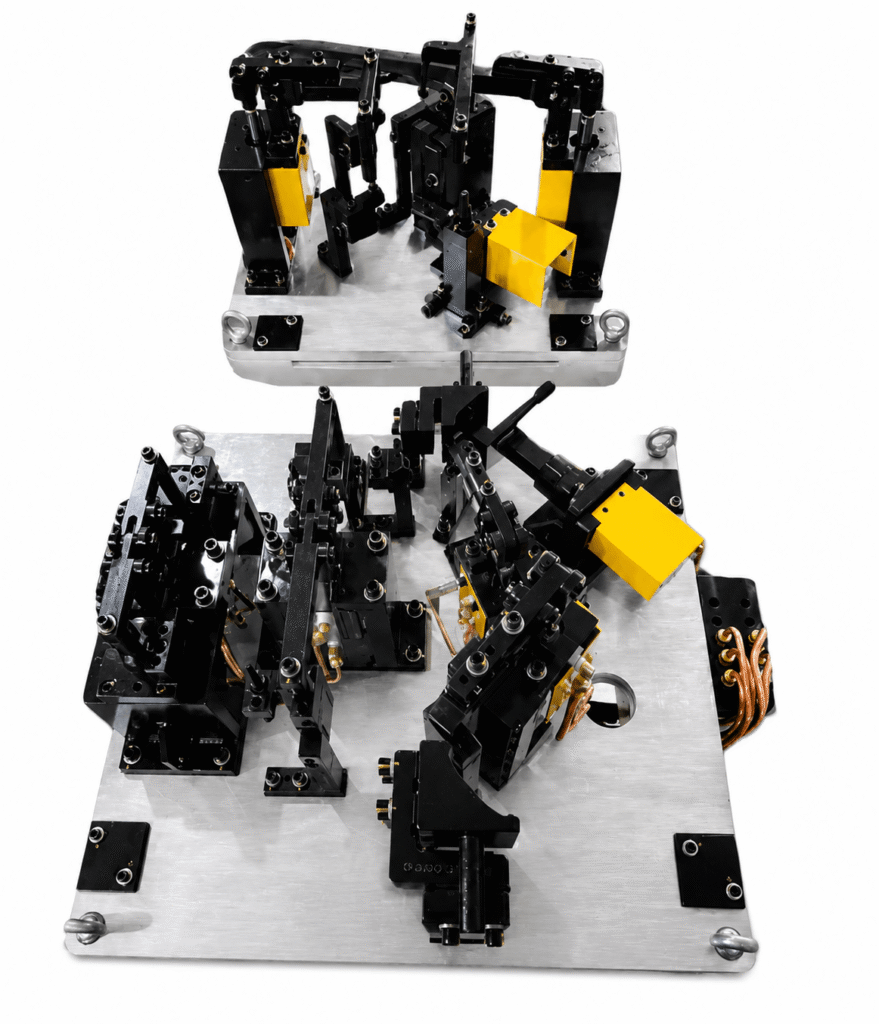

Robot Welding Fixtures

Name: Robot Welding Fixture Manufacturer in India | Pune
Price: 280000.00 INR
Availability: InStock

About the Robot Welding Fixtures

Weld tooling built to the tolerance a robot assumes. Where a hand welder compensates for a part sitting slightly proud, a robot welds air — so these fixtures are designed around locating precision and positive confirmation before the cycle runs.

Key Features

Locating tolerance matched to the robot repeatability specification
Hardened, replaceable locators at wear points
Clamp confirmation and part presence interlocked to the cycle start
Torch and cable interference cleared through the full programmed path
Spatter protection on locating surfaces to preserve accuracy in service

Ideal For / Applications

High volume robotic welding of automotive components
Precision weldments with tight positional tolerance
Multi-joint assemblies welded in a single robot cycle
Cells where fixture wear has caused progressive quality drift
Replacement tooling for existing robot cells

Frequently Asked Questions

How do you stop spatter degrading fixture accuracy?

By protecting locating surfaces, keeping datums clear of the weld zone where possible, and using hardened replaceable locators so wear is a scheduled change rather than progressive drift.

How is the fixture qualified?

Against a master sample or CMM data, with a layout drawing, datum scheme and clamping sequence supplied at handover where your PPAP requires it.

Can you rebuild an existing worn fixture?

Frequently yes. Send photographs and the original drawings if available — replacing locators and clamps is usually far cheaper than a new fixture.

Need this machine for your component?

Send us the component drawing and joint specification. VR Automation quotes against your part, not a catalogue.

Fixture Type	Jig Table Fixture
Output Current	as per requirement
Application	Automotive
Clamping Type	Pneumatic Clamp, Manual Clamp, Hydraulic Clamp, Toggle Clamp
Base Material	Mild Steel
Fixture Size	Above 3×3 m
Adjustment	Fixed
Material	Mild Steel
