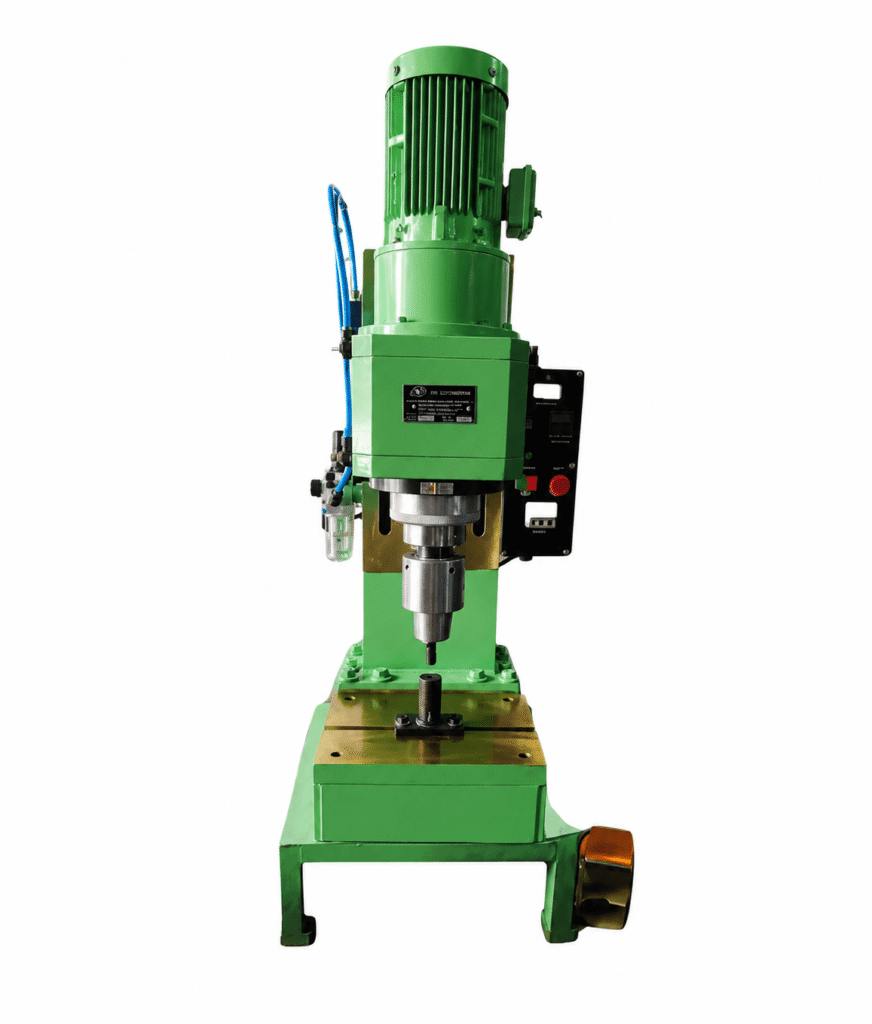

Riveting Machine Fixture

Name: Riveting Machine Fixture Manufacturer in India | Pune
Price: 9000.00 INR
Availability: InStock

About the Riveting Machine Fixture

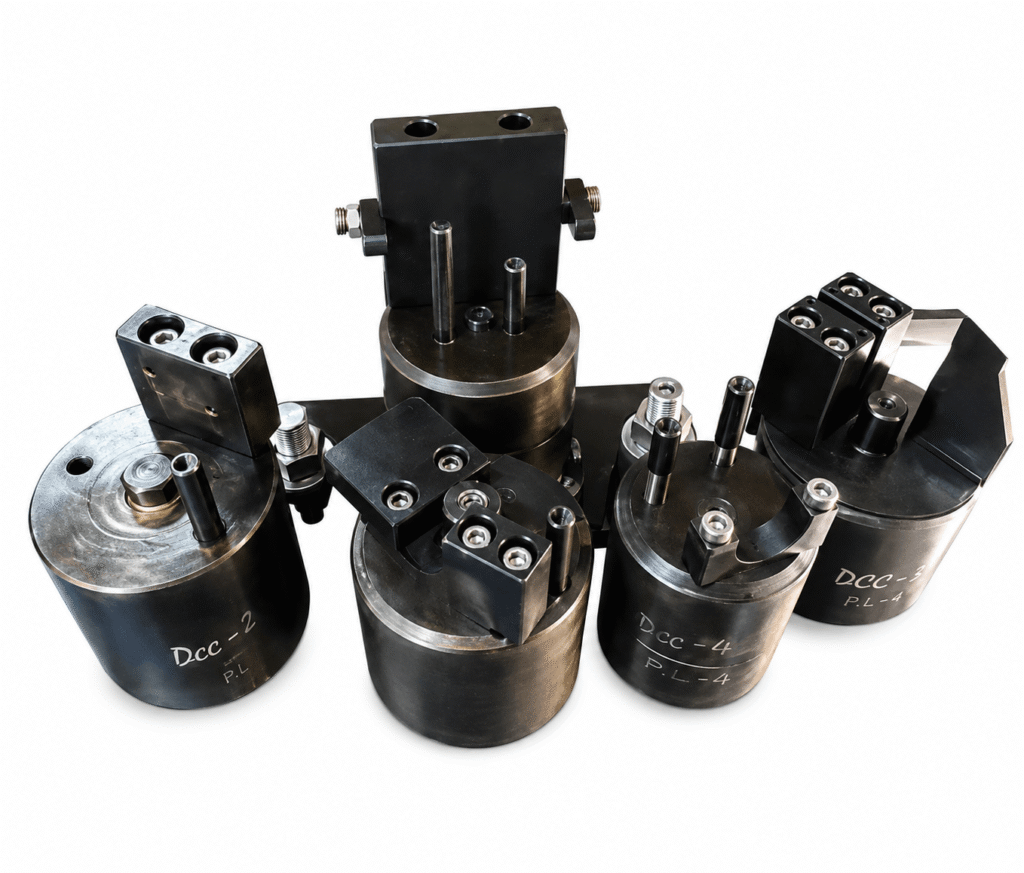

A riveting fixture locates the component under the forming head so every rivet lands in the same position on every part. It is the cheapest single improvement available to a riveting operation still relying on the operator to position the work.

Key Features

Component located against defined datums rather than by eye
Rivet position repeatable across the batch
Support beneath the rivet so the part does not deflect under forming load
Quick loading and unloading to keep cycle time down
Designed to your component drawing

Ideal For / Applications

Existing riveting machines with inconsistent rivet position
Multi-rivet parts needing indexed positions
Small component assembly where hand positioning is unreliable
Pre-production and pilot batches
Operator training and low-volume cells

Frequently Asked Questions

Will it fit our existing riveting machine?

Usually. Send photographs and dimensions of the machine table and tool holder along with the component drawing, and we will design the fixture to mount on what you already have.

Why does support under the rivet matter?

Because forming force will deflect an unsupported part, and a deflecting part gives an inconsistent head height. Supporting directly beneath the rivet is often the difference between a stable process and a drifting one.

Can one fixture cover several part numbers?

Sometimes, with changeover inserts. Tell us the family of parts at design stage rather than after the first fixture is built.

Need this machine for your component?

Send us the component drawing and joint specification. VR Automation quotes against your part, not a catalogue.

Fixture Type	Riveting Machine
Clamping Type	Manual
Machine Compatibility	Drilling machine, Grinding machine, Milling machine, CNC lathe
Material	Stainless Steel
Surface Finishing	Chrome Polish
Type	Drilling
Usage/Application	Industrial
Max Workpiece Size	Up to 100 mm
