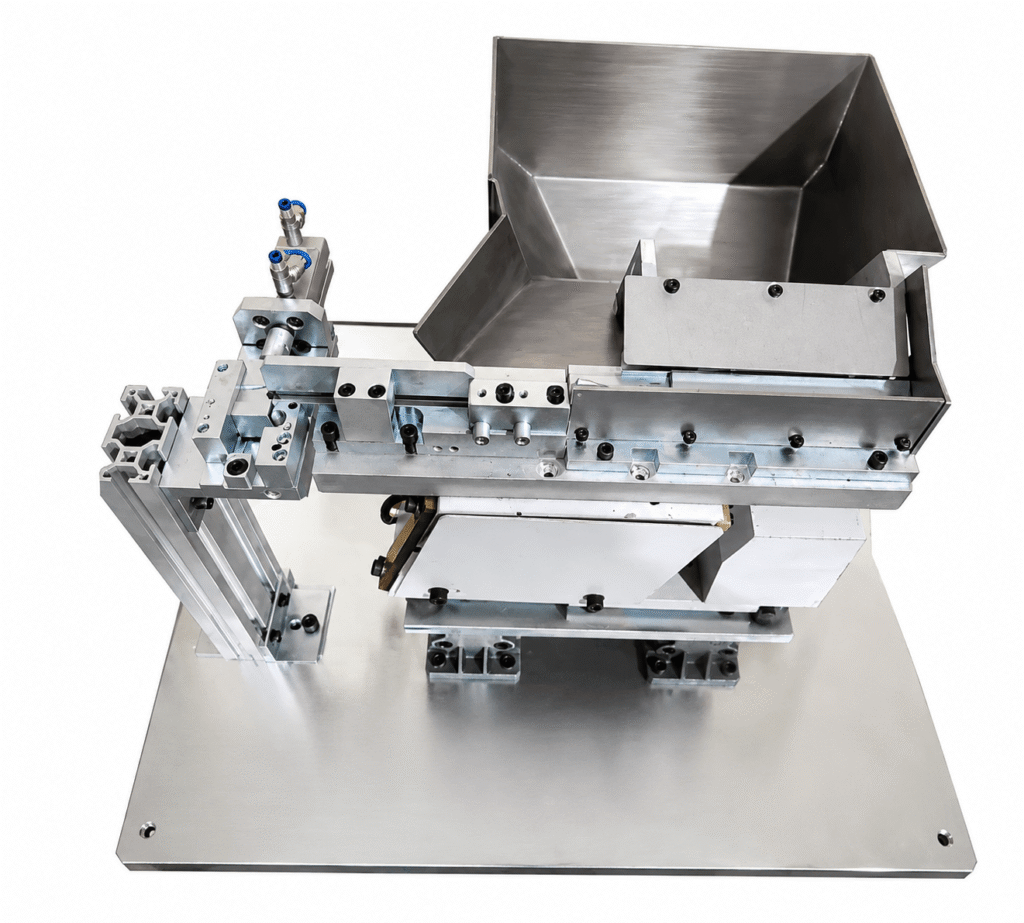

Auto Screwing Machine

Name: Automatic Screwing Machine Manufacturer in India
Price: 90000.00 INR
Availability: InStock

About the Auto Screwing Machine

An auto screwing machine feeds, presents and drives screws automatically to a set torque, removing both the pick-and-place time and the missed-screw defect from manual assembly. The feeder, the presentation method and the driver are specified together — most integration problems come from one being chosen in isolation.

Key Features

Vibratory bowl or rail feeder tooled to your specific screw
Blow feed or pick-up presentation selected to the screw geometry
Pneumatic, electric or servo driver chosen against the torque and traceability requirement
Torque and angle monitoring available to detect cross-thread and missing threads
Integrates into index tables, gantries or robotic cells

Ideal For / Applications

Electronics and electrical assembly
Switchgear and control panel build
Automotive interior and under-bonnet components
Appliance assembly lines
Sheet metal enclosures and server chassis

Frequently Asked Questions

Blow feed or pick-up — which do I need?

Blow feed shoots the screw down a tube to the bit and is faster, but needs a screw at least twice as long as its head diameter. Pick-up collects the screw at a jaw and handles short screws, large heads and non-magnetic fasteners.

Can it detect a cross-threaded or missing screw?

With a transducer-equipped electric or servo driver, yes. Monitoring torque against angle through the run-down distinguishes a cross-thread, a stripped thread and a floating screw, and each can be rejected and logged. A pneumatic clutch driver cannot.

Is the bowl feeder screw-specific?

Yes. Bowl tooling is designed around your exact screw, so we need a sample or full drawing. A bowl tooled for one screw will not orient a different head style or length reliably.

Need this machine for your component?

Send us the component drawing and joint specification. VR Automation quotes against your part, not a catalogue.

Feeding Capacity	30–40 pcs/min
Screw Size Range	M4–M8
Automation Grade	Automatic
Production Capacity(Screw/Hour)	1000
Power Source	Electric
Torque	Custom
Power Rating	300 W
Bit Type	Slotted, Hex, Phillips, Torx
